Q2-Z-1/8-01-SS500FT

Active

Qualtek

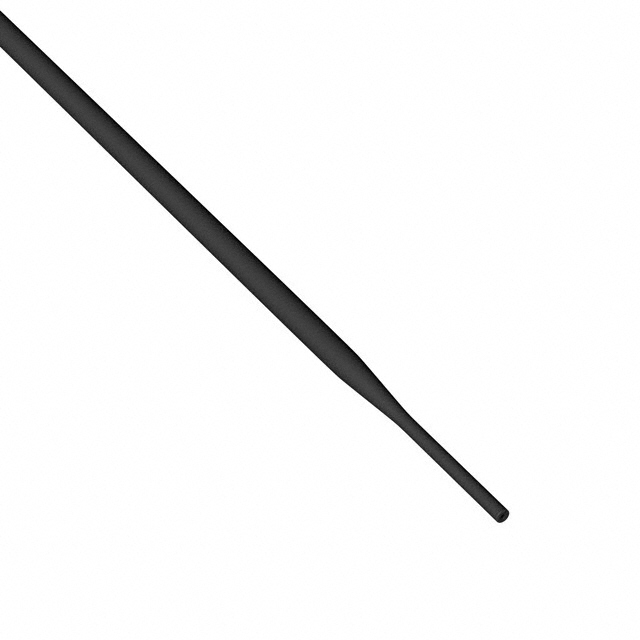

HEATSHRINK 1/8" X 500' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1/8" X 500' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-1/8-01-SS500FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	1.57 mm
Inner Diameter - Recovered [diameter]	0.062 in
Inner Diameter - Supplied [diameter]	3.18 mm
Inner Diameter - Supplied [diameter]	0.125 "
Length [x]	500 '
Length [x]	152.4 m
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.43 mm
Recovered Wall Thickness	0.017 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Color	Material	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio	Length	Length	Length	Length
Qualtek Q2-Z-1/8-01-QB48IN-25	-55 °C	125 °C	1.57 mm	0.062 in	Tubing Flexible	144 Months	3.18 mm	0.125 "	1.22 m	4 ft	0.43 mm	0.017 in	Flame Retardant	Black	Polyolefin (PO)	70 °C	-50 °F -10 °C	40 °C	2 to 1
Qualtek Q2-Z-1/8-01-SS500FT	-55 °C	125 °C	1.57 mm	0.062 in	Tubing Flexible	144 Months	3.18 mm	0.125 "	152.4 m	500 '	0.43 mm	0.017 in	Flame Retardant	Black	Polyolefin (PO)	70 °C	-50 °F -10 °C	40 °C	2 to 1
Qualtek Q2-Z-1/8-01-QB6IN-28	-55 °C	125 °C	1.57 mm	0.062 in	Tubing Flexible	144 Months	3.18 mm	0.125 "			0.43 mm	0.017 in	Flame Retardant	Black	Polyolefin (PO)	70 °C	-50 °F -10 °C	40 °C	2 to 1	152.4 mm	6 "	0.5 '
Qualtek Q2-Z-1/8-01-QX50FT	-55 °C	125 °C	1.57 mm	0.062 in	Tubing Flexible	144 Months	3.18 mm	0.125 "			0.43 mm	0.017 in	Flame Retardant	Black	Polyolefin (PO)	70 °C	-50 °F -10 °C	40 °C	2 to 1	15.2 m			50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Black 500.0' (152.4m)
