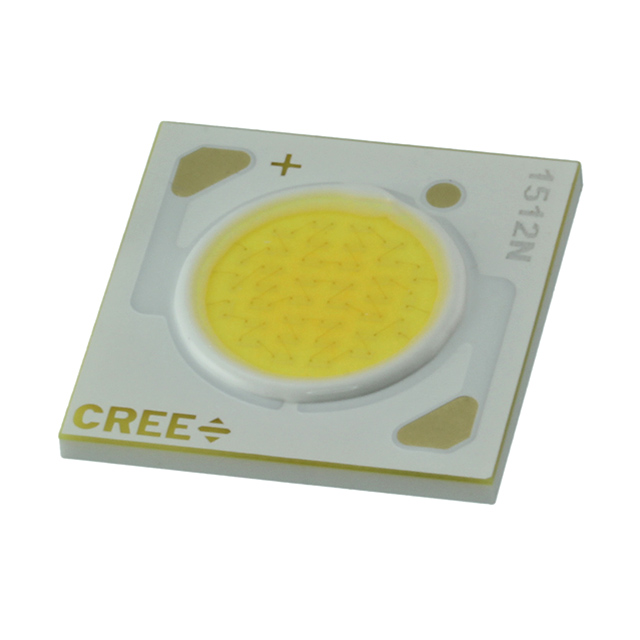

CXA1512-0000-000N0HM40E2

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA1512-0000-000N0HM40E2

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1512-0000-000N0HM40E2

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	600 mA
Current - Test	350 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.9 mm
Lumens/Watt @ Current - Test	119 lm/W
Luminous Flux @ Current/Temperature	1538 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	37 V

CXA1512 Series

...

Part	Temperature - Test	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	Viewing Angle	Current - Test	Color	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Type	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Cree LED CXA1512-0000-000N0YJ435H	85 °C	3500 K	1160 lm	Flat	115 °	350 mA	Warm White	600 mA	8.9 mm	1.7 mm	Square	37 V	93	90 lm/W	Chip On Board (COB)
Cree LED CXA1512-0000-000F0HM240G	85 °C	4000 K	1433 lm	Flat	115 °		Neutral White	1.2 A	8.9 mm	1.7 mm	Square	18 V	80	114 lm/W	Chip On Board (COB)	1485 lm	1380 lm
Cree LED CXA1512-0000-000N00M227H	85 °C	2700 K	1433 lm	Flat	115 °	350 mA	Warm White	600 mA	8.9 mm	1.7 mm	Square	37 V	80	111 lm/W	Chip On Board (COB)	1485 lm	1380 lm
Cree LED CXA1512-0000-000F0HN20E1	85 °C	6500 K	1650 lm	Flat	115 °		Cool White	1.2 A	8.9 mm	1.7 mm	Square	18 V	80	131 lm/W	Chip On Board (COB)	1710 lm	1590 lm
Cree LED CXA1512-0000-000F0HM440H	85 °C	4000 K	1538 lm	Flat	115 °		Neutral White	1.2 A	8.9 mm	1.7 mm	Square	18 V	80	122 lm/W	Chip On Board (COB)
Cree LED CXA1512-0000-000F00M235F	85 °C		1433 lm	Flat	115 °		Warm White	1.2 A	8.9 mm	1.7 mm	Square	18 V	80	114 lm/W	Chip On Board (COB)	1485 lm	1380 lm
Cree LED CXA1512-0000-000N0UH430H	85 °C	3000 K	1010 lm	Flat	115 °	350 mA	Warm White	600 mA	8.9 mm	1.7 mm	Square	37 V	90	78 lm/W	Chip On Board (COB)
Cree LED CXA1512-0000-000N0UJ250F	85 °C	5000 K	1080 lm	Flat	115 °	350 mA	Cool White	600 mA	8.9 mm	1.7 mm	Square	37 V		83 lm/W	Chip On Board (COB)
Cree LED CXA1512-0000-000F00N240F	85 °C	4000 K	1650 lm	Flat	115 °		Neutral White	1.2 A	8.9 mm	1.7 mm	Square	18 V	70	131 lm/W	Chip On Board (COB)	1710 lm	1590 lm
Cree LED CXA1512-0000-000N0HM40E2	85 °C	5700 K	1538 lm	Flat	115 °	350 mA	Cool White	600 mA	8.9 mm	1.7 mm	Square	37 V	80	119 lm/W	Chip On Board (COB)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 2.67
Newark	Each	100	$ 2.58
		250	$ 2.15
		500	$ 2.09

Description

General part information

CXA1512 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1512 White, Cool Square
