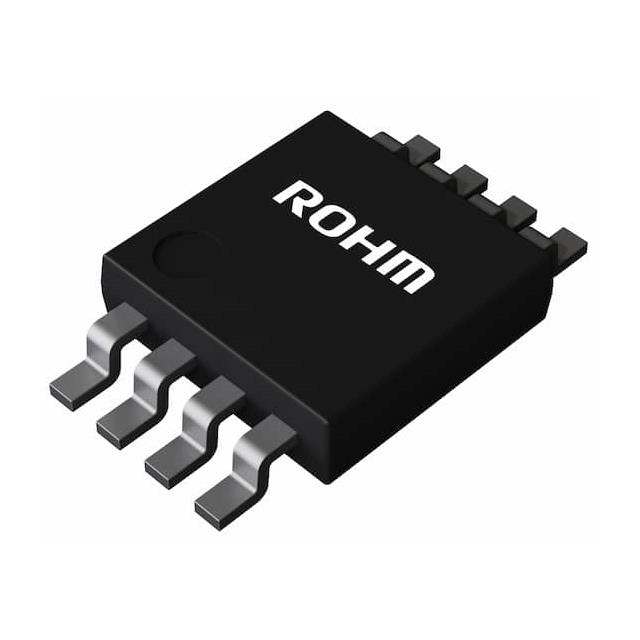

BD14215FVJ-LAE2
ActiveCURRENT SENSE AMPLIFIER: THE BD1
Deep-Dive with AI
Search across all available documentation for this part.
BD14215FVJ-LAE2
ActiveCURRENT SENSE AMPLIFIER: THE BD1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BD14215FVJ-LAE2 |
|---|---|
| Amplifier Type | Current Sense |
| Current - Input Bias | 1 µA |
| Current - Supply | 310 µA |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| Supplier Device Package | 8-TSSOP-BJ |
| Voltage - Input Offset | 600 µV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.18 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 2.18 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.72 | |||
| Tape & Reel (TR) | 2500 | $ 0.65 | ||
| 5000 | $ 0.62 | |||
| 7500 | $ 0.60 | |||
| 12500 | $ 0.58 | |||
| 17500 | $ 0.56 | |||
Description
General part information
BD14215FVJ-LA Series
The BD14215FVJ-LA current sense amplifier. This is the product guarantees long time support in Industrial market. This device operates from a single 2.7V to 5.5V power supply. It has wide common mode voltage range from -0.2V to +26V, outputs analog voltage. The gain is 20V/V. The matched gain resistor minimizes gain error and realizes low offset voltage. The input bias current is 1µA (Typ) at typical condition. There is no need to adjust the gain error.
