SLKC-A08FGMS-GCP-225

Active

Amphenol LTW

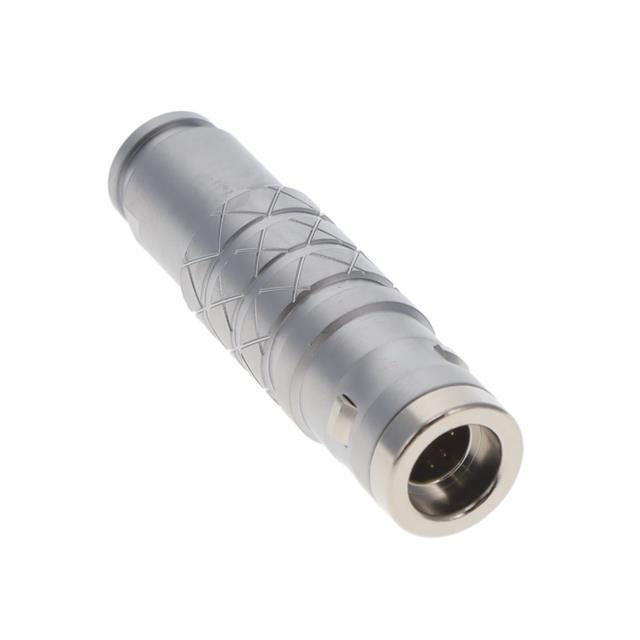

CIRCULAR CONNECTOR, FLOS+ K SERIES, CABLE MOUNT PLUG, 8 CONTACTS, SOLDER PIN, PUSH-PULL

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, FLOS+ K SERIES, CABLE MOUNT PLUG, 8 CONTACTS, SOLDER PIN, PUSH-PULL

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Cable Opening [Min] [diameter]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max] [diameter]	Fastening Type	Shell Size - Insert	Connector Type	Number of Positions	Termination	Shielding	Mounting Type	Contact Finish - Mating	Orientation	Color	Contact Material	Mounting Feature	Primary Material	Current Rating (Amps)	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Features
Amphenol LTW SLKC-A08FGMS-GCP-225	IPX8 - Waterproof	0.244 in	6.5 mm	6.2 mm	0.256 in	Push-Pull	C-8	Male Pins Plug	8	Solder	Unshielded	Free Hanging (In-Line)	Gold	G	Black	Copper Alloy
Amphenol LTW SLKC-S02EEFP-GCP-001	IPX8 - Waterproof					Push-Pull	C-2	Male Pins Plug	2	Solder	Unshielded	Panel Mount Through Hole	Gold	G	Black	Copper Alloy	Bulkhead - Front Side Nut	Plastic
Amphenol LTW SLKC-02FGMS-GCP-225	IP68 - Dust Tight Waterproof					Push-Pull		Male Pins Plug	2		Shielded	Free Hanging (In-Line)	Gold	Keyed	Silver	Copper Alloy		Metal	12 A	Metal	125 °C	-40 °C	400 V	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 41.84

General part information

8 Position Circular Connector Plug, Male Pins Solder
