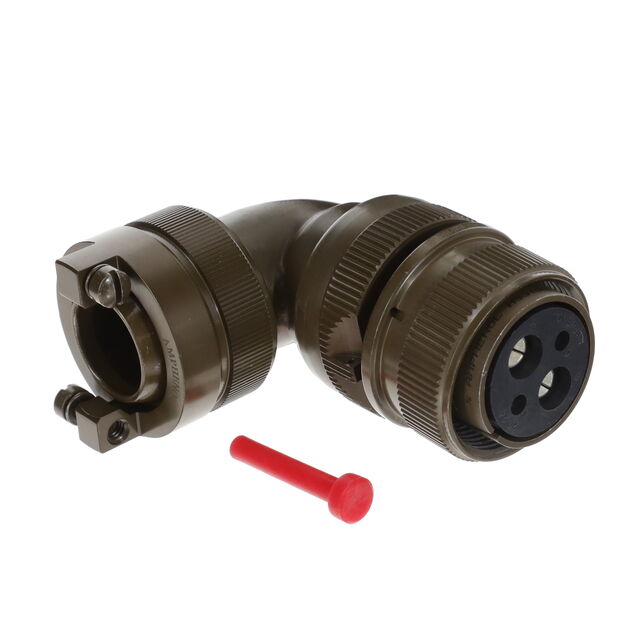

MS3108E20-24S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108E20-24S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E20-24S

Applications	Military, Marine
Cable Opening [custom]	0.656 in
Cable Opening [custom]	16.66 mm
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 13 A
Features	Strain Relief
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	20
Shielding	Unshielded

MS3108E20 Series

Part	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Shell Material	Applications	Shell Finish	Orientation	Shielding	Qualification	Mounting Type	Contact Finish - Mating	Color	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Grade	Current Rating (Amps)	Shell Size - Insert	Voltage Rating
Amphenol Industrial Operations MS3108E20-29S	Cable Clamp Coupling Nut	29	20	Female Sockets Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene
Amphenol Industrial Operations MS3108E20-19P	Cable Clamp Coupling Nut	19	20	Male Pins Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene
Amphenol Industrial Operations MS3108E20-15P	Cable Clamp Coupling Nut	15	20	Male Pins Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-DTL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene	0.656 in	16.66 mm	7	Military	23 A
Amphenol Industrial Operations MS3108E20-24S	Strain Relief	24	20	Female Sockets Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-DTL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene	0.656 in	16.66 mm	4	Military	13 A 46 A
Amphenol Industrial Operations MS3108E20-9P
Amphenol Industrial Operations MS3108E20-6S
Amphenol Industrial Operations MS3108E20-27P	Cable Clamp Coupling Nut	27	20	Male Pins Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-DTL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene	0.656 in	16.66 mm	14	Military	13 A
Amphenol Industrial Operations MS3108E20-25S
Amphenol Industrial Operations MS3108E20-7S
Amphenol Industrial Operations MS3108E20-4S	Cable Clamp Coupling Nut			Female Sockets Plug	Copper Alloy	-55 °C	125 °C	Metal	Environment Resistant	Aluminum Alloy	Marine Military	Olive Drab Chromate over Cadmium	N	Unshielded	MIL-DTL-5015	Free Hanging (In-Line) Right Angle	Silver	Olive Drab	Neoprene	0.656 in	16.66 mm	4	Military	23 A	20-4	900 VAC 1250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.80
		10	$ 59.46
		25	$ 57.18
		50	$ 55.27
		100	$ 52.22

Description

General part information

MS3108E20 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
