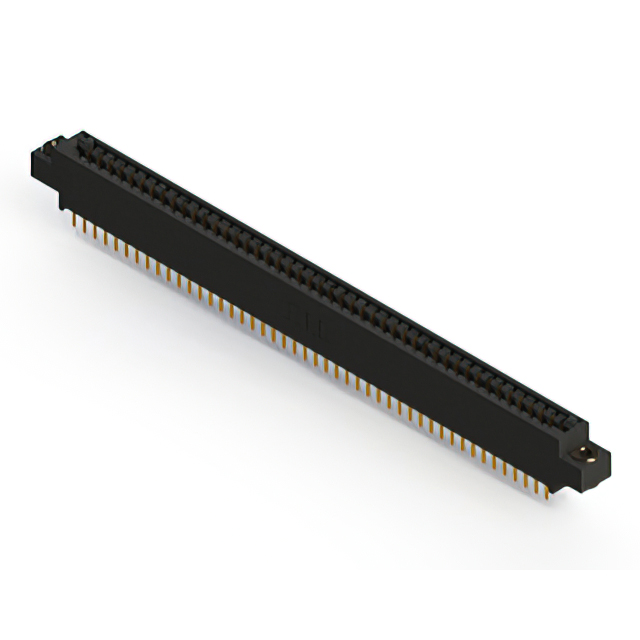

896-092-521-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 92POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-092-521-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 92POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-092-521-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 92 |
| Number of Positions/Bay/Row [custom] | 46 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-092 Series
| Part | Gender | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Read Out | Material - Insulation | Termination | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Wire Wrap | 92 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 92 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 92 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever | ||
EDAC Inc. | Female | Gold | 0.125 in | 3.18 mm | 46 | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Dual | Polyphenylene Sulfide (PPS) | Solder | 92 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Black | 2 | 125 °C | -40 °C | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-092 Series
92 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
