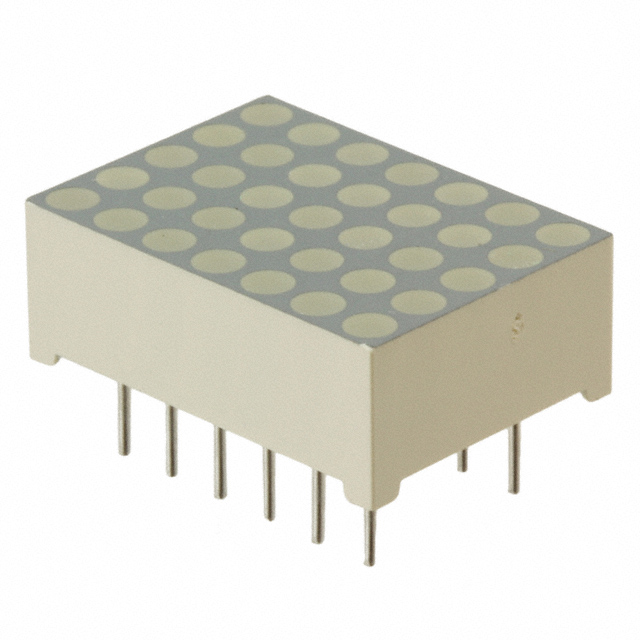

TA07-11GWA

Active

Kingbright

LED MATRIX 5X7 0.7" 565NM GRN

Search across all available documentation for this part.

Active

Kingbright

LED MATRIX 5X7 0.7" 565NM GRN

Technical Specifications

Parameters and characteristics for this part

Specification	TA07-11GWA

Color	Green
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Anode Column, Common Cathode Row
Millicandela Rating	12 mcd
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	17.8 mm
Size / Dimension [y]	0.7 in
Size / Dimension [z]	0.25 "
Size / Dimension [z]	6.3 mm
Voltage - Forward (Vf) (Typ)	2.2 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Configuration [y]	Configuration [x]	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Internal Connection	Interface	Size / Dimension [y]	Size / Dimension [z]
Kingbright TA07-11SURKWA	0.5 in	0.7 in	0.25 "	12.7 mm	17.78 mm	6.4 mm	7	5	1.95 V	Red	90 mcd	Common Anode Column Common Cathode Row
Kingbright TA07-11SYKWA	0.5 in	0.7 in	0.25 "	12.7 mm	17.78 mm	6.4 mm	7	5	2 V	Yellow	140 mcd	Common Anode Column Common Cathode Row	ASCII EBCDIC
Kingbright TA07-11SRWA	0.7 in	0.5 in	0.25 "		12.7 mm		7	5	1.85 V	Red	34 mcd	Common Anode Column Common Cathode Row		17.8 mm	6.3 mm
Kingbright TA07-11GWA	0.7 in	0.5 in	0.25 "		12.7 mm		7	5	2.2 V	Green	12 mcd	Common Anode Column Common Cathode Row		17.8 mm	6.3 mm
Kingbright TA07-11YWA	0.7 in	0.5 in	0.25 "		12.7 mm		7	5	2.1 V	Yellow		Common Anode Column Common Cathode Row		17.8 mm	6.3 mm
Kingbright TA07-11EWA	0.7 in	0.5 in	0.25 "		12.7 mm		7	5	2 V	Red	8.2 mcd	Common Anode Column Common Cathode Row		17.8 mm	6.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Green 2.2V 0.50" L x 0.70" W x 0.25" H (12.70mm x 17.80mm x 6.30mm)

Technical documentation and resources
