C4D15120H

Active

Wolfspeed

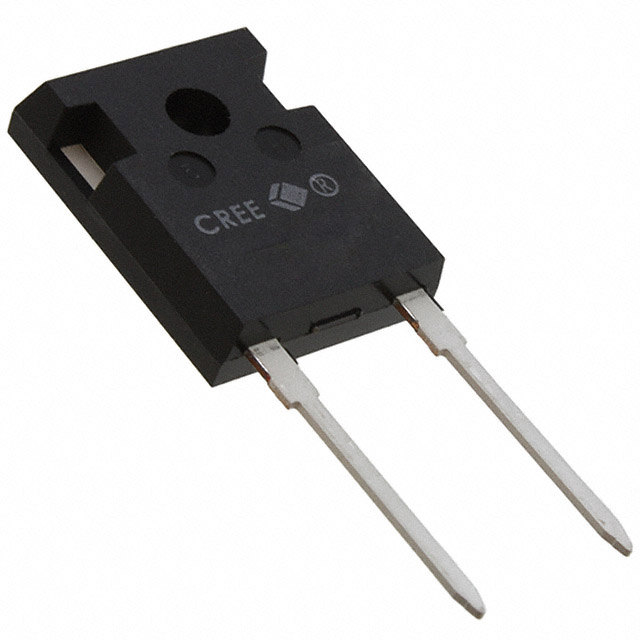

DIODE SIL CARB 1.2KV 39A TO247-2

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SIL CARB 1.2KV 39A TO247-2

Technical Specifications

Parameters and characteristics for this part

Specification	C4D15120H

Capacitance @ Vr, F	1200 pF
Current - Average Rectified (Io)	39 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-247-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If [Max]	1.8 V

Part	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Speed	Reverse Recovery Time (trr)	Supplier Device Package	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Diode Configuration
Wolfspeed C4D15120A	Through Hole	175 ░C	-55 C	1200 pF	No Recovery Time	0 ns	TO-220-2	43.5 A	200 µA	SiC (Silicon Carbide) Schottky	TO-220-2	1.2 kV	1.8 V
Wolfspeed C4D15120H	Through Hole	175 ░C	-55 C	1200 pF	No Recovery Time	0 ns	TO-247-2	39 A	200 µA	SiC (Silicon Carbide) Schottky	TO-247-2	1.2 kV	1.8 V
Wolfspeed C4D15120D	Through Hole	175 ░C	-55 C		No Recovery Time		TO-247-3		250 µA	SiC (Silicon Carbide) Schottky	TO-247-3	1.2 kV		24.5 V	1.8 V	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 39A Through Hole TO-247-2
