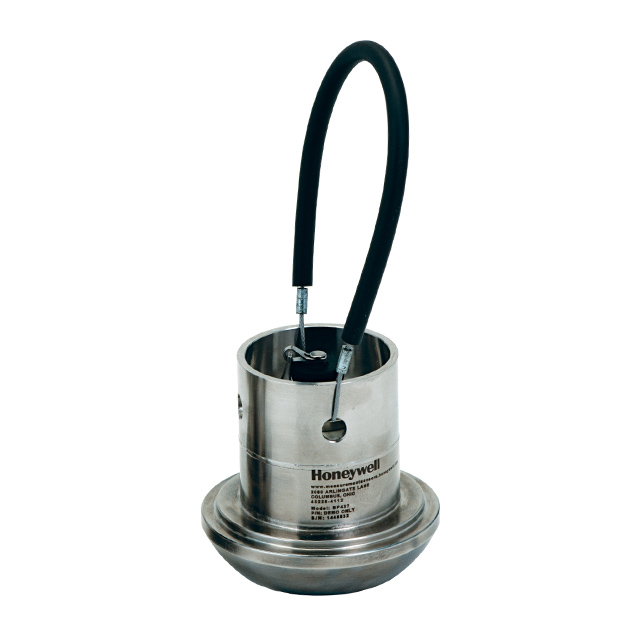

060-P189-02

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Pressure Type	Operating Pressure [x]	Operating Pressure [x]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Style	Output [Max]	Output [Min]	Port Size [custom]	Port Size [custom]	Features	Operating Pressure	Operating Pressure
Honeywell Sensing and Productivity Solutions T&M 060-P189-04	Analog Current	Vented Gauge	6000 PSI	41368.54 kPa	Connector	125 °C	-40 °C	Industrial Automation	9 V	28 V	9000 PSI	62052.82 kPa	0.2 %	Weco® 1502 Hammer Union	20 mA	4 mA	51 mm	2 "	Temperature Compensated
Honeywell Sensing and Productivity Solutions T&M 060-P189-01	Analog Current	Vented Gauge			Connector	125 °C	-40 °C	Industrial Automation	9 V	28 V	7500 PSI	51710.68 kPa	0.2 %	Weco® 1502 Hammer Union	20 mA	4 mA	51 mm	2 "	Temperature Compensated	34473.79 kPa	5000 PSI
Honeywell Sensing and Productivity Solutions T&M 060-P189-02	Analog Current	Vented Gauge	10000 PSI	68947.57 kPa	Connector	125 °C	-40 °C	Industrial Automation	9 V	28 V	15000 PSI	103421.36 kPa	0.2 %	Weco® 1502 Hammer Union	20 mA	4 mA	51 mm	2 "	Temperature Compensated
Honeywell Sensing and Productivity Solutions T&M 060-P189-03	Analog Current	Vented Gauge	15000 PSI	103421.36 kPa	Connector	125 °C	-40 °C	Industrial Automation	9 V	28 V	22500 PSI	155132.04 kPa	0.2 %	Weco® 1502 Hammer Union	20 mA	4 mA	51 mm	2 "	Temperature Compensated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1709.37

General part information

HAMMER UNION PRESSURE SENSORS

Technical documentation and resources

No documents available
