R30R-0100

Active

OK INDUSTRIES

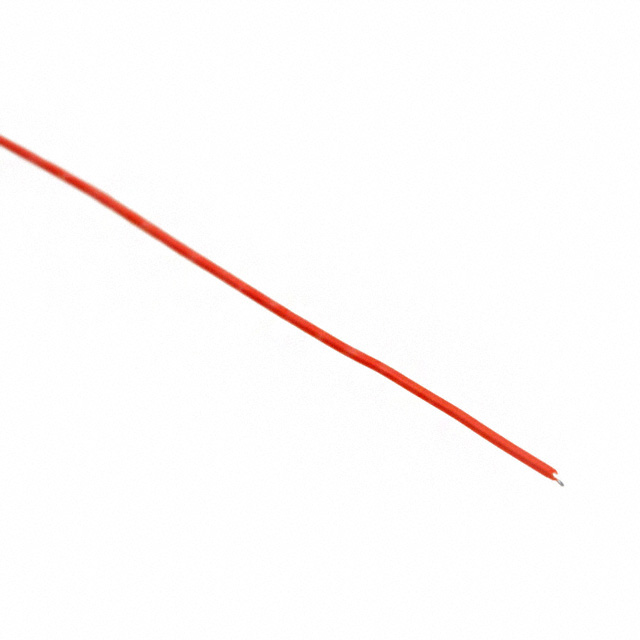

WIRE, PVDF, RED, 30 AWG, 100 FT

Search across all available documentation for this part.

Active

OK INDUSTRIES

WIRE, PVDF, RED, 30 AWG, 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	R30R-0100

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Jacket Color	Red
Length	30.5 m
Length [x]	100 ft
Operating Temperature	105 C
Ratings	VW-1, UL Style 1423
Wire Gauge	30 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Wire Gauge	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Ratings	Jacket (Insulation) Material	Length	Length	Conductor Plating	Operating Temperature	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
OK INDUSTRIES R30R-1000	0.019 in	0.5 mm	Red	Copper Bare	30 AWG	0.25 mm	0.01 in	UL Style 1423 VW-1	Polyvinylidene Fluoride (PVDF)	1000 ft	304.8 m	Silver	105 C
OK INDUSTRIES R30R-0100	0.019 in	0.5 mm	Red	Copper Bare	30 AWG	0.25 mm	0.01 in	UL Style 1423 VW-1	Polyvinylidene Fluoride (PVDF)		30.5 m	Silver	105 C	100 ft	0.004 in	0.09 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG Red Polyvinylidene Fluoride (PVDF) 100' (30.5m)
