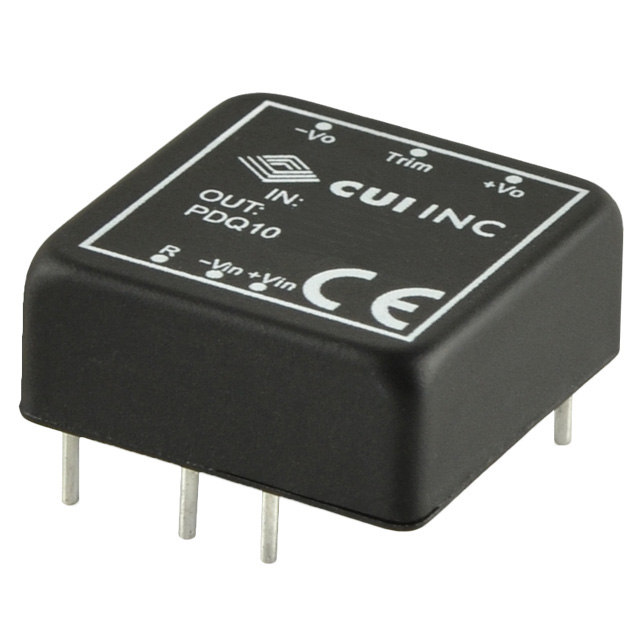

PDQ10-Q24-D5-D
ActiveCUI Inc.
DC DC CONVERTER +/-5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
PDQ10-Q24-D5-D
ActiveCUI Inc.
DC DC CONVERTER +/-5V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQ10-Q24-D5-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN |
| Control Features | Active High, Enable |
| Current - Output (Max) | 1 A |
| Current - Output (Max) | 1 A |
| Efficiency | 84 % |
| Features | OVP, UVLO, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 10 W |
| Standard Number | 55032 Class A |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 33.89 | |
| 5 | $ 33.63 | |||
| 12 | $ 33.37 | |||
| 36 | $ 32.85 | |||
| 60 | $ 31.28 | |||
| 108 | $ 28.68 | |||
| 252 | $ 28.16 | |||
Description
General part information
PDQ10 Series
Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 9V - 36V Input
