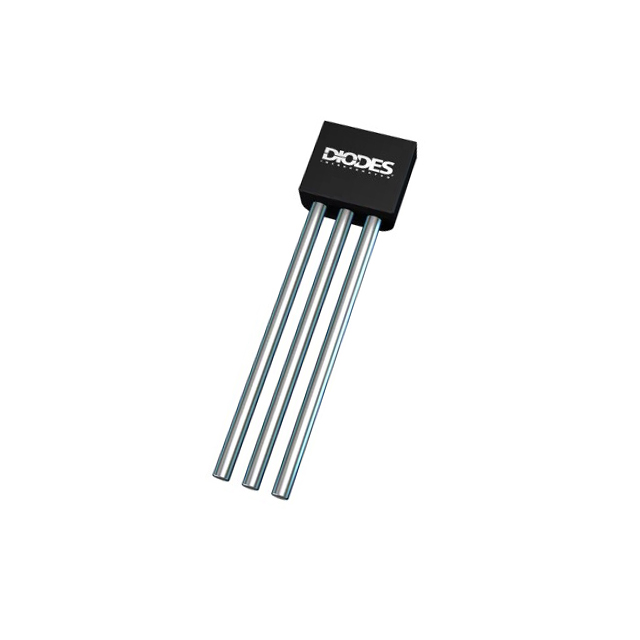

ZTX450STZ

Active

Diodes Inc

TRANS GP BJT NPN 45V 1A 3-PIN E-LINE BOX

Search across all available documentation for this part.

Active

Diodes Inc

TRANS GP BJT NPN 45V 1A 3-PIN E-LINE BOX

Technical Specifications

Parameters and characteristics for this part

Specification	ZTX450STZ

Current - Collector (Ic) (Max) [Max]	1 A
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	150 MHz
Mounting Type	Through Hole
Package / Case	E-Line-3
Power - Max [Max]	1 W
Supplier Device Package	E-Line (TO-92 compatible)
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	250 mV
Voltage - Collector Emitter Breakdown (Max)	45 V

Part	Current - Collector (Ic) (Max) [Max]	Transistor Type	Mounting Type	Vce Saturation (Max) @ Ib, Ic [Max]	Voltage - Collector Emitter Breakdown (Max)	Frequency - Transition	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Current - Collector Cutoff (Max) [Max]
Diodes Inc ZTX450	1 A	NPN	Through Hole	250 mV	45 V	150 MHz	-55 °C	200 C	E-Line (TO-92 compatible)	1 W	100	E-Line-3	100 nA
Diodes Inc ZTX450STZ	1 A	NPN	Through Hole	250 mV	45 V	150 MHz			E-Line (TO-92 compatible)	1 W	100	E-Line-3
Diodes Inc ZTX450STOB	1 A	NPN	Through Hole	250 mV	45 V	150 MHz	-55 °C	200 C	E-Line (TO-92 compatible)	1 W	100	E-Line-3 Formed Leads	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 45 V 1 A 150MHz 1 W Through Hole E-Line (TO-92 compatible)
