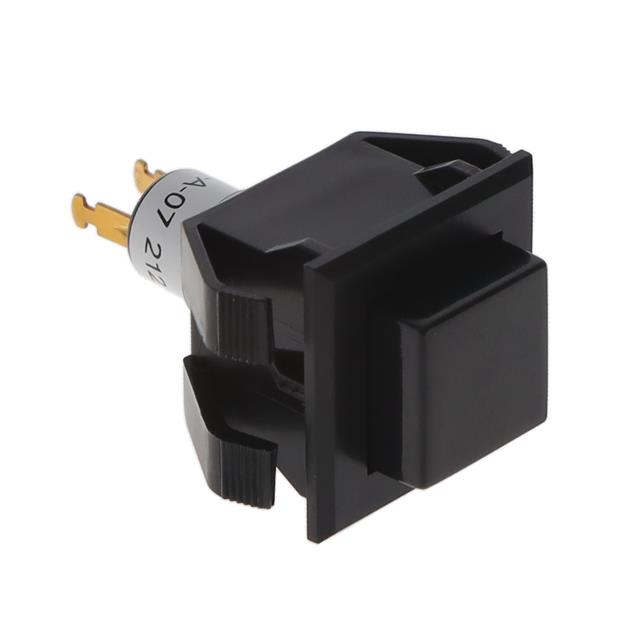

30-601-A-07

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 5V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.15A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Features	Type	Current Rating (Amps)	Mounting Type	Electrical Life	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Grayhill Inc. 30-601 BLK-EW	Off-Mom	Epoxy Sealed Terminals	Standard	150 mA	Panel Mount Rear	1000000 Cycles	SPST-NO	6.75 mm	No Marking	85 °C	-40 °C	Round Plunger	Wire Leads	Black	5 V
Grayhill Inc. 30-601-A-07	Off-Mom		Standard	150 mA	Panel Mount Snap-In	1000000 Cycles	SPST-NO		No Marking	85 °C	-40 °C	Button Square	Solder Lug	Black	5 V	19.05 mm	19.05 mm
Grayhill Inc. 30-601 RED	Off-Mom		Standard	150 mA	Panel Mount Rear	1000000 Cycles	SPST-NO	6.75 mm	No Marking	85 °C	-40 °C	Round Plunger	Solder Lug	Red	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
