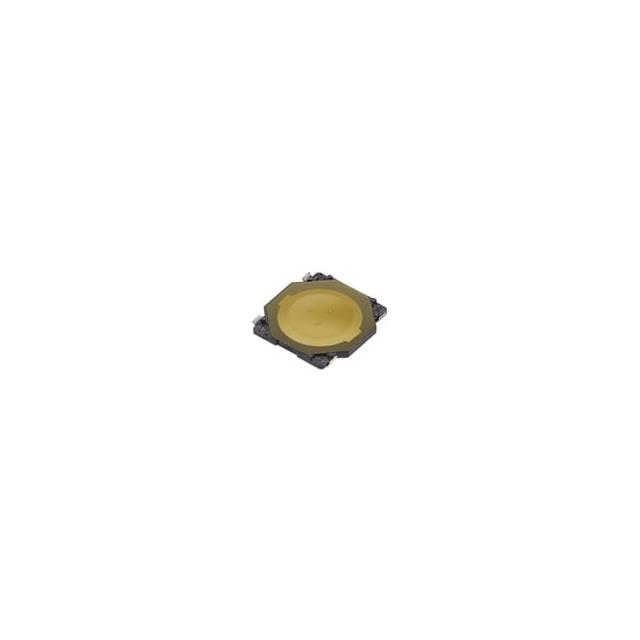

SKRWAEE030
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKRWAEE030
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKRWAEE030 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 0.35 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Snap Dome |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 3.7 mm |
| Outline [y] | 3.7 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2500 | $ 0.24 | |||
| 5000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| 2500 | $ 0.24 | |||
| 5000 | $ 0.22 | |||
| Tape & Reel (TR) | 10000 | $ 0.21 | ||
Description
General part information
SKRWA Series
Tactile Switch SPST-NO Top Actuated Surface Mount
