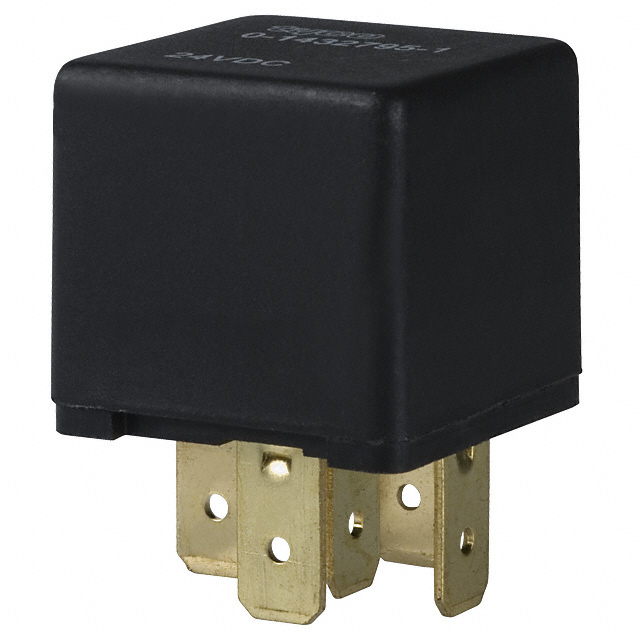

1432826-1
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
1432826-1
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 30A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1432826-1 |
|---|---|
| Coil Current | 66.7 mA |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Mounting Type | Socketable |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 14 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1432826 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
Documents
Technical documentation and resources
No documents available
