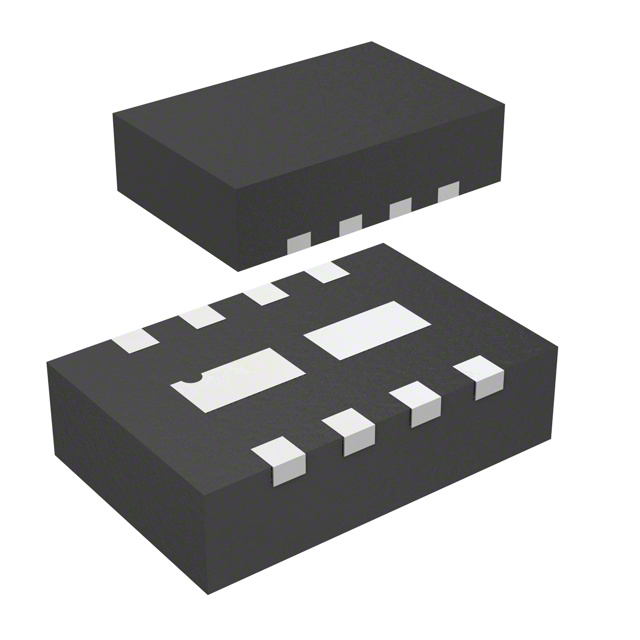

ZXTC6717MCTA

Active

Diodes Inc

COMPLEMENTARY,15V, 4.5A, DFN3020-8

Search across all available documentation for this part.

Active

Diodes Inc

COMPLEMENTARY,15V, 4.5A, DFN3020-8

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTC6717MCTA

Current - Collector (Ic) (Max) [Max]	4 A, 4.5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300, 300
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-WDFN Exposed Pad
Power - Max [Max]	1.7 W
Supplier Device Package	W-DFN3020-8
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	310 mV, 310 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	15 V
Voltage - Collector Emitter Breakdown (Max) [Min]	12 V

Complementary,15V, 4.5A, DFN3020-8

Part	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Mounting Type	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Transistor Type	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Package / Case
Diodes Inc ZXTC6717MCTA	310 mV 310 mV	12 V	15 V	W-DFN3020-8	Surface Mount	1.7 W	-55 °C	150 °C	100 nA	1 NPN 1 PNP	4 A 4.5 A	300 300	8-WDFN Exposed Pad
