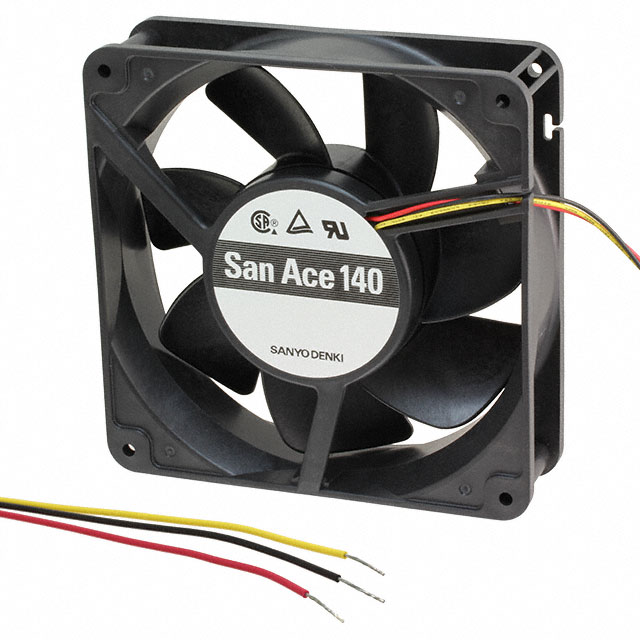

109P1412H101

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	109P1412H101

Air Flow	4.45 m³/min
Air Flow	159 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.73 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	8.76 W
RPM	2600 RPM
Size / Dimension [x]	140 mm
Size / Dimension [z]	140 mm
Static Pressure	94.1 Pa
Static Pressure	0.378 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	450.42 g
Weight	0.993 lb
Width [y]	38 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Current Rating (Amps)	Features	Termination	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Material - Frame	Material - Blade	Noise	RPM	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	Approval Agency	Weight	Weight	Bearing Type	Power (Watts)	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]
Sanyo Denki America Inc. 109P1412H1D01	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	0.73 A	Locked Rotor Sensor	3 Wire Leads	140 mm	140 mm	Tubeaxial	Plastic	Plastic	46 dB(A)	2600 RPM	12 VDC	94.1 Pa	0.378 in H2O	38 mm	CSA TUV UL	450.42 g	0.993 lb	Ball	8.76 W	4.45 m³/min	159 CFM	10.2 VDC	13.8 VDC
Sanyo Denki America Inc. 109P1412H101	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	0.73 A	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	140 mm	140 mm	Tubeaxial	Plastic	Plastic	46 dB(A)	2600 RPM	12 VDC	94.1 Pa	0.378 in H2O	38 mm	CSA TUV UL	450.42 g	0.993 lb	Ball	8.76 W	4.45 m³/min	159 CFM	10.2 VDC	13.8 VDC
Sanyo Denki America Inc. 109P1412M101	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	0.33 A	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	140 mm	140 mm	Tubeaxial	Plastic	Plastic	38 dB(A)	1900 RPM	12 VDC	52.1 Pa	0.209 in H2O	38 mm	CSA TUV UL	450.42 g	0.993 lb	Ball	3.96 W	3.28 m³/min	117 CFM	10.2 VDC	13.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 159.0 CFM (4.45m³/min) 3 Wire Leads
