Q-010150001108i

Active

Amphenol Custom Cable

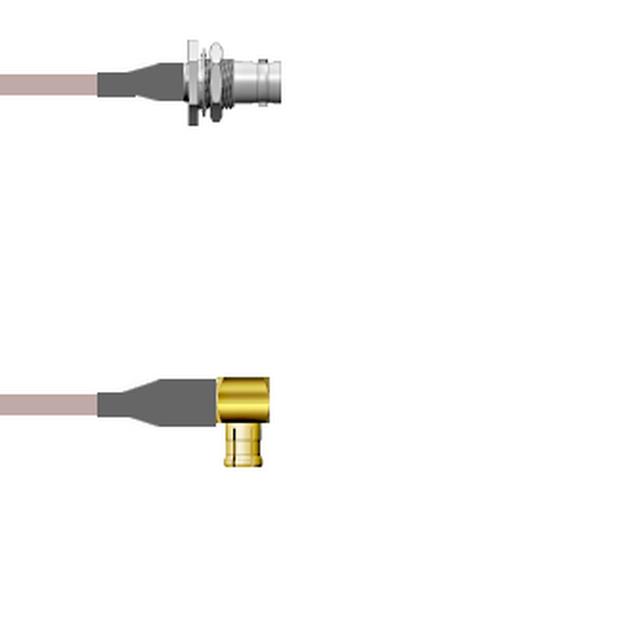

CBL ASSY BNC-MCX JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-010150001108i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-010150001108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-010150 Series

Part	1st Contact Gender	Length	Length	1st Connector	Frequency - Max [Max]	Overall Impedance	Color	1st Connector Mounting Type	Features	Cable Type	2nd Connector	Style	1st Connector Mounting Feature	2nd Contact Gender	2nd Connector Mounting Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-010150001009i	Female	9 "	228.6 mm	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-010150001001M	Female	39.4 in	1 m	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-0101500010.5M	Female	19.69 "	50 cm	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-010150001048i	Female	48 in	1200 mm	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-010150001006i	Female	6 in	152.4 mm	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-010150001.75M	Female	29.53 "	750 mm	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-010150001108i	Female	108 in	2.7 m	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-010150001018i	Female			BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-010150001.25M	Female			BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)			250 mm	9.843 "
Amphenol Custom Cable Q-010150001002M	Female	78.7 in	2 m	BNC Jack	4 GHz	50 Ohms	Copper	Panel Mount	Shielded	RG-178	MCX Plug Right Angle	BNC to MCX	Bulkhead - Front Side Nut	Male	Free Hanging (In-Line)	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.30
		25	$ 87.55
		50	$ 85.80
		100	$ 84.05
		250	$ 82.29

Description

General part information

Q-010150 Series

Cable Assembly Coaxial BNC to MCX RG-178 108.0" (2.7m) 9.0'
