902-0147-000

Active

ROBOTIS

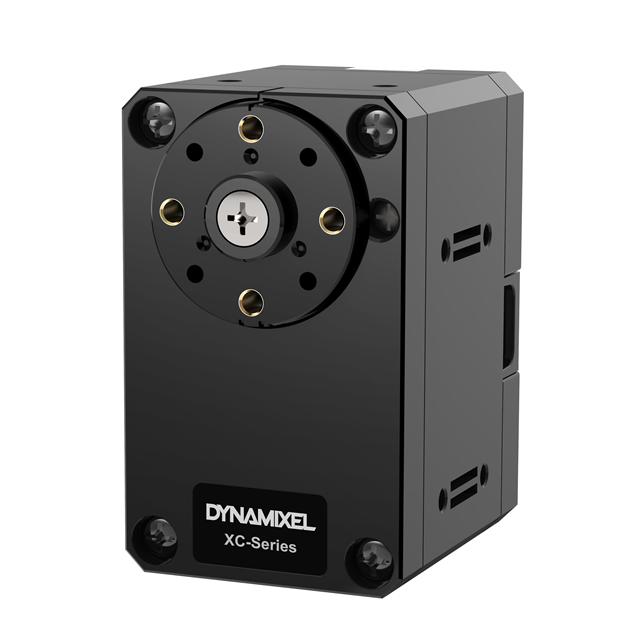

XC430-W240-T DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

XC430-W240-T DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0147-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	245.2
Motor Type	Brushed
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-5 °C
RPM	70 RPM
Size / Dimension [x]	1.83 in
Size / Dimension [x]	46.5 mm
Size / Dimension [y]	28.5 mm
Size / Dimension [y]	1.122 in
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	269.1 oz-in
Torque - Max Momentary (oz-in / mNm)	1900 mNm
Type	DC Motor
Voltage - Rated	12 VDC
Weight	0.143 lb
Weight	65 g

Part	Voltage - Rated	Features	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Encoder Type	Termination Style	Motor Type	Function	Gear Reduction Ratio	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Type	RPM
ROBOTIS 902-0147-000	12 VDC	Integrated Controller	0.143 lb	65 g	80 C	-5 °C	Absolute	Connector	Brushed	Servomotor	245.2	1.83 in	28.5 mm	46.5 mm	1.122 in	269.1 oz-in	1900 mNm	DC Motor	70 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.90

General part information

Brushed DC Motor Servomotor 70 RPM Absolute 12VDC

Technical documentation and resources

No documents available
