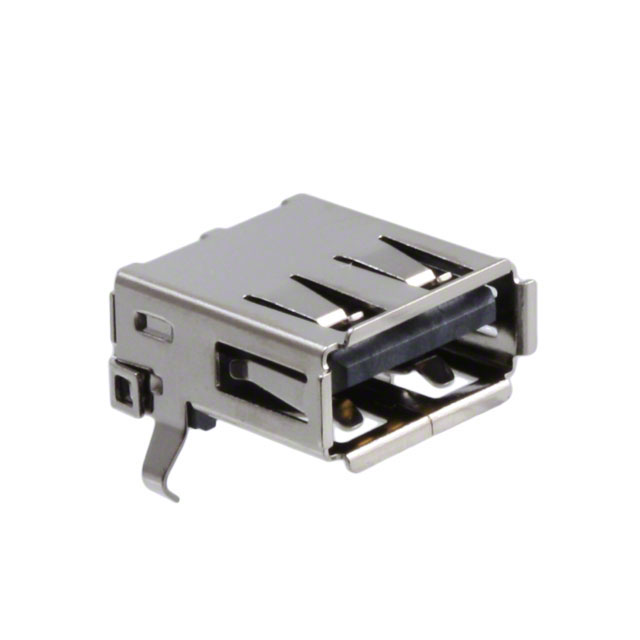

1001-002-01100 - 1001-002-01100

1001-002-01100

Active
CnC Tech, LLC

CONN RCPT USB1.1 TYPEA 4P SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSB Soldering Profile (After DC 20/02)Soldering Recommendations for USBs+1
1001-002-01100 - 1001-002-01100

1001-002-01100

Active
CnC Tech, LLC

CONN RCPT USB1.1 TYPEA 4P SMD RA

Deep-Dive with AI

DocumentsUSB Soldering Profile (After DC 20/02)Soldering Recommendations for USBs+1

Technical Specifications

Parameters and characteristics for this part

Specification1001-002-01100
Connector TypeUSB-A (USB TYPE-A)
Contact FinishGold
Current Rating (Amps)1.5 A
GenderReceptacle
Material Flammability RatingUL94 V-0
Mating Cycles1500
Mounting FeatureHorizontal
Mounting TypeSurface Mount, Right Angle
Number of Contacts [custom]4
Number of Ports1
Operating Temperature [Max]50 °C
Operating Temperature [Min]-55 °C
Shell/Shielding MaterialBrass
SpecificationsUSB 1.1
TerminationSolder
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 0.76
10$ 0.64
25$ 0.62
40$ 0.60
80$ 0.58
230$ 0.53
440$ 0.47
945$ 0.46

Description

General part information

1001-002 Series

USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Surface Mount, Right Angle
