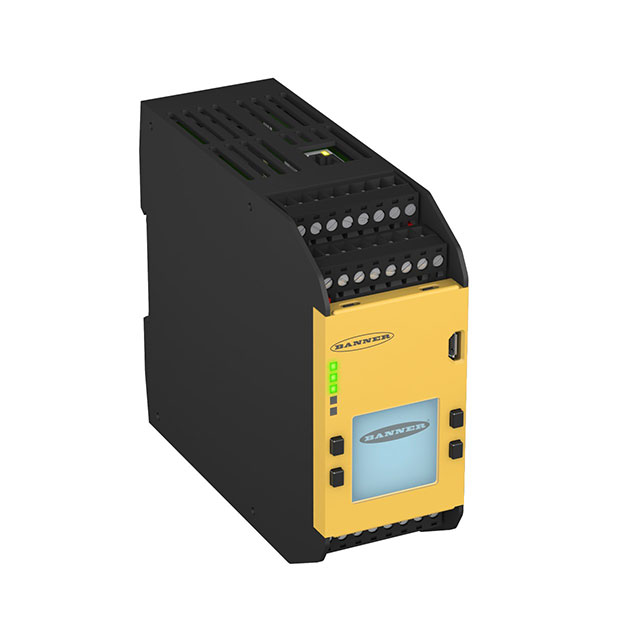

XS26-2DE
ActiveSAFETY CONTROLLER, 24 VDC, 0.16 A, SCREW, 26 INPUT, XS26 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
XS26-2DE
ActiveSAFETY CONTROLLER, 24 VDC, 0.16 A, SCREW, 26 INPUT, XS26 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XS26-2DE |
|---|---|
| Approval Agency | UL, CE, cULus |
| Contact Rating @ Voltage | 24 VDC, 0.5 A |
| Controller Type | General Purpose |
| Features | Grounded Switching Output, Test Output |
| Mounting Type | DIN Rail |
| Number of Inputs and Type | Digital |
| Number of Inputs and Type | 26 |
| Safety Category | Category 4, PLe, SIL3 |
| Safety Outputs and Type | Solid State (2) |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XS26 Series
XS26-2DE is an XS26 base safety controller. Up to eight expansion I/O modules can be added as automation requirements grow or change. The expansion module has a variety of safety inputs, solid-state safety outputs, and safety relay outputs. The safety controller and input modules allow safety inputs to be converted to status outputs for efficient terminal use.
Documents
Technical documentation and resources
