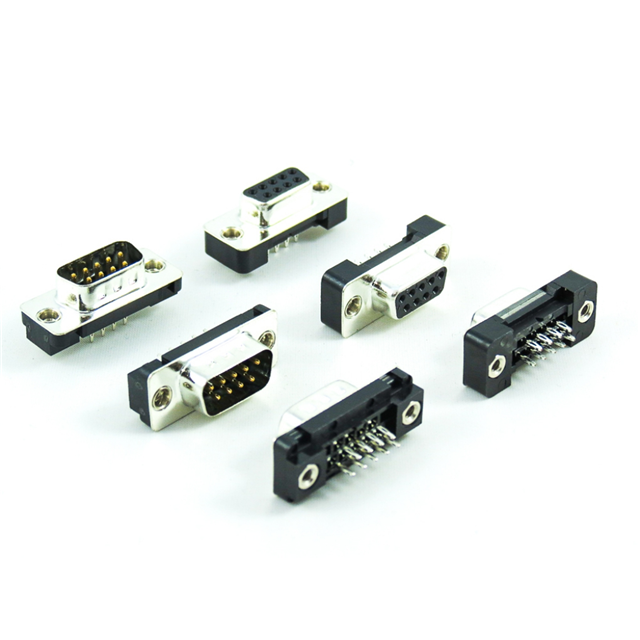

7905-09FTBG00N3N6A
ActiveOupiin
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
7905-09FTBG00N3N6A
ActiveOupiin
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7905-09FTBG00N3N6A |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.99 | |
| 150 | $ 1.86 | |||
| 300 | $ 1.66 | |||
| 450 | $ 1.33 | |||
| 600 | $ 1.06 | |||
Description
General part information
7905-09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
No documents available
