430474-501
ActiveLaird Thermal Systems, Inc.

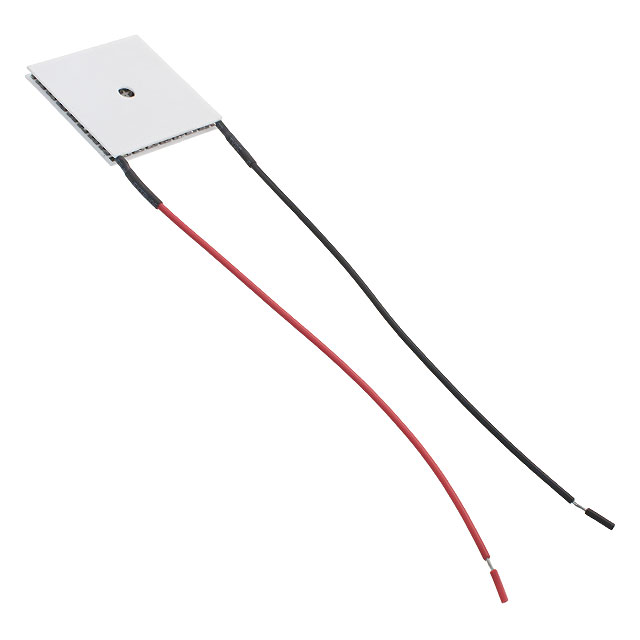

PELTIER SH10,125,05,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
430474-501
ActiveLaird Thermal Systems, Inc.
PELTIER SH10,125,05,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430474-501 |
|---|---|
| Current - Max [Max] | 4 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.2 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 33.7 W |
| Resistance | 3.3 Ohms |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 29.7 mm |
| Voltage - Max [Max] | 14.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.23 | |
| 5 | $ 47.33 | |||
| 20 | $ 45.88 | |||
| 40 | $ 44.43 | |||
| 60 | $ 43.27 | |||
| 100 | $ 42.10 | |||
Description
General part information
430474 Series
Peltier Module 33.7W @ 25°C 4 A 80°C
Documents
Technical documentation and resources
