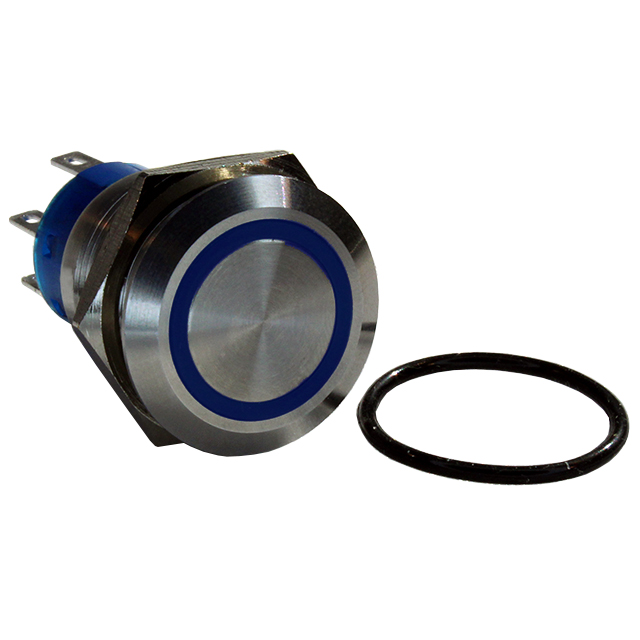

AHU2LBSBN

Active

CIT Relay and Switch

SWITCH PB DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AHU2LBSBN

Active

CIT Relay and Switch

SWITCH PB DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHU2LBSBN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

AHU2 Series

Part	Actuator Type	Features	Illumination Type, Color	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Actuator Marking	Mechanical Life	Switch Function	Electrical Life	Mounting Type	Illumination Voltage (Nominal)	Type	Color - Actuator/Cap	Voltage Rating - AC	Ingress Protection	Circuit	Panel Cutout Dimensions [diameter]
CIT Relay and Switch AHU2LBSB12	Button Flush Round	Stainless Steel	Blue LED	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front	12 VDC	Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2NKSRN	Button Flush Round		LED Red	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	On-Mom	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2LASZZ	Button Flush Round	Stainless Steel		3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front		Anti-Vandal	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2NBBRN	Button Flush Round		LED Red	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	On-Mom	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Black	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2NBSRN	Button Flush Round	Stainless Steel	LED Red	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	On-Mom	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2LBSBN	Button Flush Round		Blue LED	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2LKBRN	Button Flush Round		LED Red	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Black	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2LKSBN	Button Flush Round		Blue LED	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2NKSGN	Button Flush Round		Green LED	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	1000000 Cycles	On-Mom	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm
CIT Relay and Switch AHU2LKSRN	Button Flush Round		LED Red	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	500000 Cycles	On-On	50000 Cycles	Panel Mount Front		Anti-Vandal Illuminated	Silver	125 V	IP67 - Dust Tight Waterproof	DPDT	19 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.00
		10	$ 9.86
		25	$ 9.54

Description

General part information

AHU2 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
