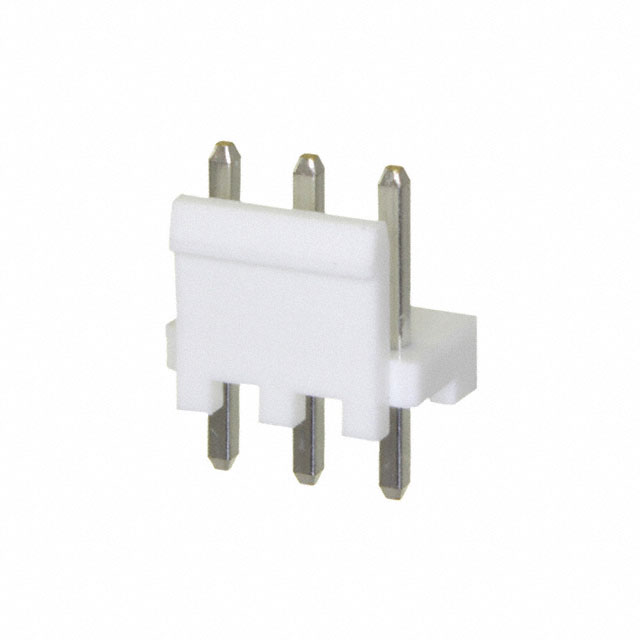

B3P-VH-B

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	B3P-VH-B

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Number of Rows	Connector Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Material	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Termination	Shrouding	Contact Finish - Post	Style	Material Flammability Rating	Mounting Type	Features
JST Sales America Inc. B3P-VH-B	10 A	0.156 in	3.96 mm	Locking Ramp	0.37 in	9.4 mm	Natural	1	Header	0.146 in	3.7 mm	0.575 in	14.6 mm	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	7.7 mm	0.303 in	All	Brass	-25 °C	85 °C	Square	Solder	Shrouded - 1 Wall	Tin	Board to Cable/Wire	UL94 V-0	Through Hole
JST Sales America Inc. B3P-VH-FB-B	10 A	0.156 in	3.96 mm	Locking Ramp	0.433 in	11 mm	Natural	1	Header	0.146 in	3.7 mm			Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC			All	Copper Alloy	-25 °C	85 °C	Square	Solder	Shrouded - 4 Wall	Tin	Board to Cable/Wire	UL94 V-0	Through Hole	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.156" (3.96mm)
