14-471.036

Active

EAO

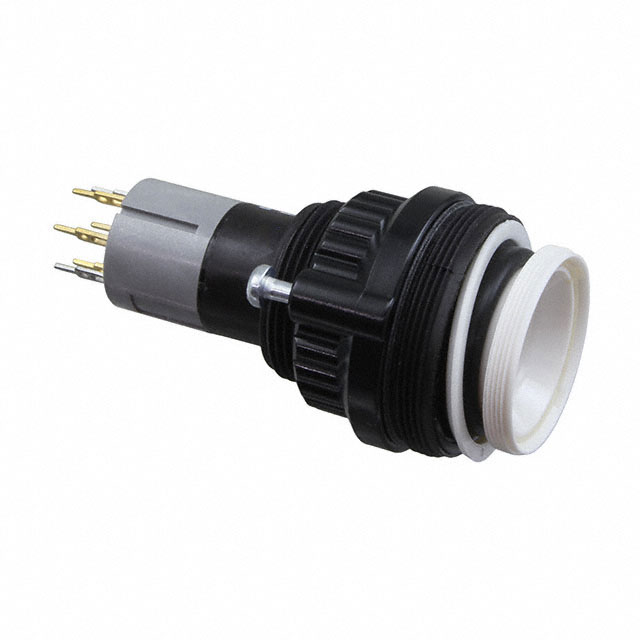

ILLUMINATED PUSHBUTTON MAIN LL 2NO UT D29 GOLD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

ILLUMINATED PUSHBUTTON MAIN LL 2NO UT D29 GOLD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	14-471.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	DPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Type	Actuator Marking	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Circuit	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Mechanical Life	Voltage Rating - DC
EAO 14-471.036	Standard	No Marking	PC Pin Solder Lug	22.3 mm	Off-On	DPST-NO	42 V	Round Button (Not Included)	100 mA	55 °C	-25 °C	Panel Mount Front	IP67 - Dust Tight Waterproof	1000000 Cycles	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Front
