28601.4
ActiveConta-Clip, Inc.

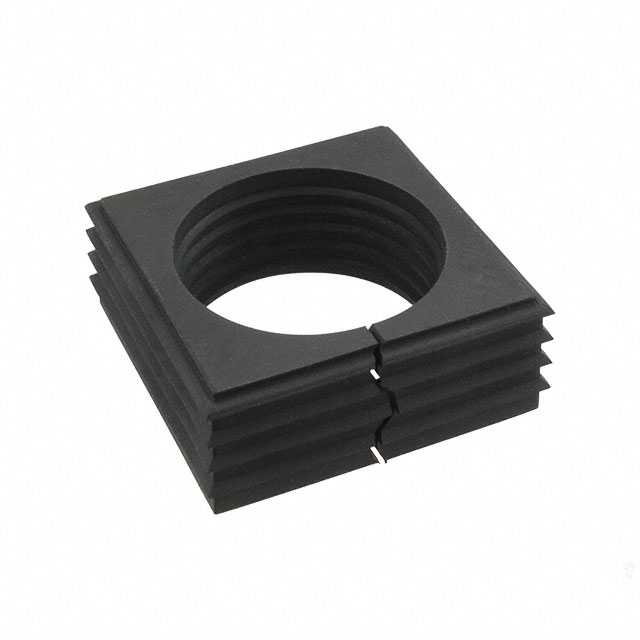

KDS LARGE SEALING SLEEVE 33MM
Deep-Dive with AI
Search across all available documentation for this part.
28601.4
ActiveConta-Clip, Inc.
KDS LARGE SEALING SLEEVE 33MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28601.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 1.299 in |
| Diameter - Inside [Max] [diameter] | 33 mm |
| Diameter - Inside [Min] [diameter] | 32 mm |
| Diameter - Inside [Min] [diameter] | 1.26 in |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions | 42.8 mm |
| Panel Cutout Dimensions [custom] | 1.685 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.37 | |
| 5 | $ 2.25 | |||
| 10 | $ 2.19 | |||
| 30 | $ 2.13 | |||
| 50 | $ 2.09 | |||
Description
General part information
28601 Series
Square - 1.685" (42.80mm) Frame Grommet, Split 1.260" ~ 1.299" (32.00mm ~ 33.00mm) Black
Documents
Technical documentation and resources
No documents available
