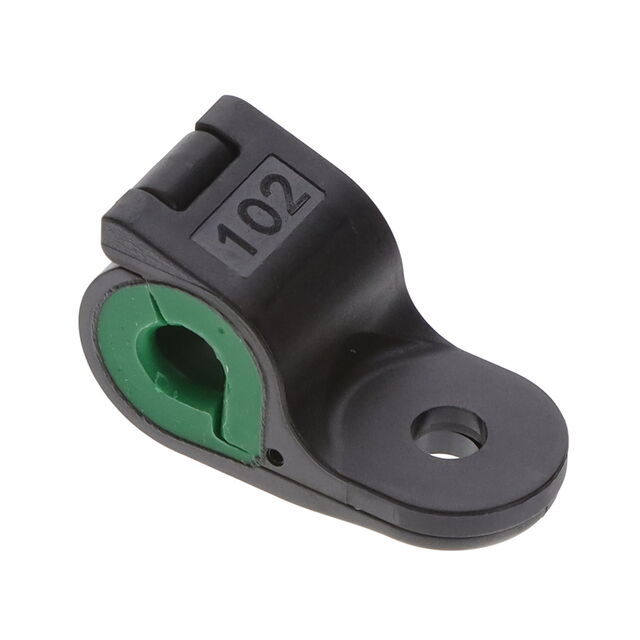

PCL400102

Active

AMPHENOL PCD

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSystem Attachments

PCL400102

Active

AMPHENOL PCD

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

DocumentsSystem Attachments

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCL400102

Bundle Center to Mounting Center [x]	16.26 mm
Bundle Center to Mounting Center [x]	0.64 in
Color	Black, Light Green
Features	Protective Coating, Corrosion Resistant, Non-Conductive
Height [z]	0.71 in
Height [z]	18.03 mm
Length	1.27 "
Length	32.26 mm
Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 HB, UL94 V-0
Mounting Type	Fastener
Opening Size [custom]	5.56 mm
Opening Size [custom]	0.219 in
Panel Hole Size	5.08 mm
Panel Hole Size	0.2 in
Screw Size	10-32
Type	Clamp, P-Type
Type Attributes	Hinged
Width	15.24 mm
Width	0.6 in

PCL400 Series

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Type	Type Attributes	Width	Width	Features	Material Flammability Rating	Height [z]	Height [z]	Length	Length	Mounting Type	Panel Hole Size	Panel Hole Size	Material	Opening Size [z]	Opening Size	Color	Screw Size	Opening Size [custom]	Opening Size [custom]	Bundle Center to Mounting Center [custom]	Bundle Center to Mounting Center [custom]	Opening Size [z]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Length [x]	Length [x]	Opening Size
AMPHENOL PCD PCL400101	0.59 in	14.99 mm	Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	0.642 in	16.3 mm	29.97 mm	1.18 in	Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)	0.125 in	3.18 mm	Black Light Green	10-32
AMPHENOL PCD PCL400109			Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	1.39 "	35.31 mm	51.56 mm	2.03 in	Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)			Black Light Green	10-32	22.25 mm	0.876 in	25.91 mm	1.02 in
AMPHENOL PCD PCL400106	0.85 in	21.59 mm	Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	1.05 in	26.67 mm	43.18 mm	1.7 in	Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)	0.594 in		Black Light Green	10-32					15.09 mm
AMPHENOL PCD PCL400102			Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	0.71 in	18.03 mm	32.26 mm	1.27 "	Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)			Black Light Green	10-32	5.56 mm	0.219 in				16.26 mm	0.64 in
AMPHENOL PCD PCL400113			Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	1.82 in	46.23 mm			Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)		1.251 in	Black Light Green	10-32						31.24 mm	1.23 in	2.45 in	62.23 mm	31.78 mm
AMPHENOL PCD PCL400116			Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	2.14 in	54.36 mm			Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)	1.532 in		Black Light Green	10-32			35.31 mm	1.39 in	38.91 mm			2.78 in	70.61 mm
AMPHENOL PCD PCL400112			Clamp P-Type	Hinged	15.24 mm	0.6 in	Corrosion Resistant Non-Conductive Protective Coating	UL94 HB UL94 V-0	1.76 in	44.7 mm	59.94 mm	2.36 in	Fastener	5.08 mm	0.2 in	Polyetheretherketone (PEEK)			Black Light Green	10-32	29.39 mm	1.157 in				29.97 mm	1.18 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.25
		10	$ 36.57
		25	$ 33.19
		50	$ 30.90
		100	$ 28.83
		250	$ 26.39
Newark	Each	250	$ 26.98

Description

General part information

PCL400 Series

Cable Clamp, P-Type Black, Light Green Fastener 0.219" (5.56mm)

Documents

Technical documentation and resources

System Attachments

Datasheet
