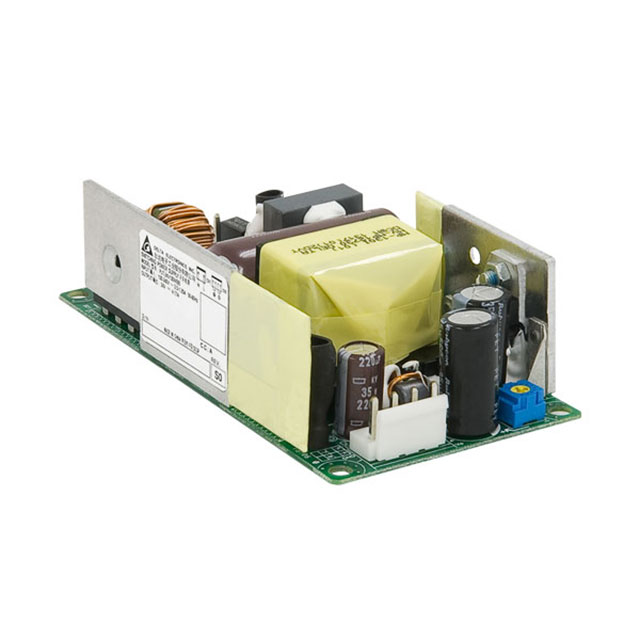

PJT-15V100WBBA

Active

Delta Electronics

AC/DC CONVERTER 15V 80W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 15V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	PJT-15V100WBBA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	5.33 A
Efficiency	89 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W, 80 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Voltage - Output 1	Approval Agency	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	Type	Features
Delta Electronics PJT-15V100WBBA	15 V	CB CE cURus TUV	Chassis Mount	3000 V	-10 °C	70 °C	ITE (Commercial)	5.33 A	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	1	90 VAC	264 VAC	89 %	80 W 100 W	Open Frame	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 34.11

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
