50.612 PA/SWL

Active

Jacob GmbH

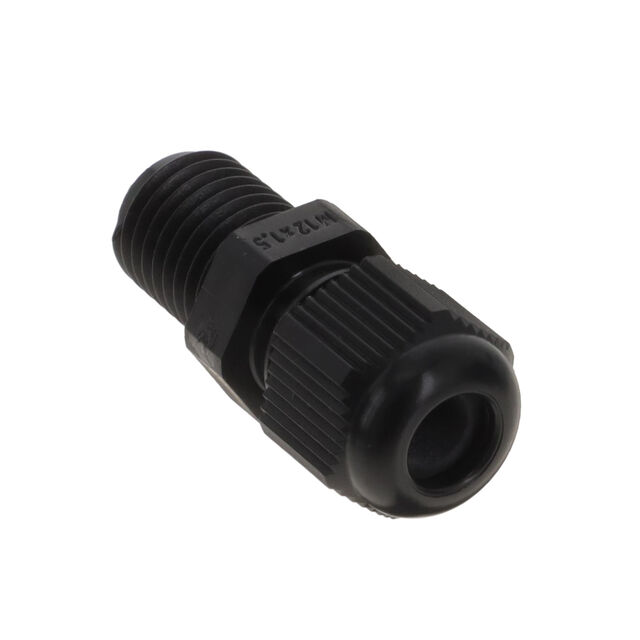

CABLE GLAND 3-6.5MM M12 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.612 PA/SWL

Active

Jacob GmbH

CABLE GLAND 3-6.5MM M12 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.612 PA/SWL

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M12x1.5
Type	Cable Gland

50.612 Series

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Size	Material	Type	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length
Jacob GmbH 50.612 ES	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5	Stainless Steel	Cable Gland	O-Ring Seal	0.236 in	6 mm	Silver	100 °C	-40 °C
Jacob GmbH 50.612PA/R7035	2 mm	0.079 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.197 in	5 mm	Gray	100 °C	-40 °C	8 mm	0.315 in
Jacob GmbH 50.612 PA/SWL	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.256 "	6.5 mm	Black	100 °C	-40 °C	15 mm	0.591 in
Jacob GmbH 50.612 PA7035	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.256 "	6.5 mm	Gray	100 °C	-40 °C	8 mm	0.315 in
Jacob GmbH 50.612 PA/FL	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.256 "	6.5 mm	Gray	100 °C	-40 °C	8 mm	0.315 in
Jacob GmbH 50.612 PA/RSW	2 mm	0.079 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.197 in	5 mm	Black	100 °C	-40 °C	8 mm	0.315 in
Jacob GmbH 50.612 PA7035L	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.256 "	6.5 mm	Gray	100 °C	-40 °C	15 mm	0.591 in
Jacob GmbH 50.612 M	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5	Brass Nickel Plated	Cable Gland	O-Ring Seal	0.236 in	6 mm	Silver	100 °C	-40 °C
Jacob GmbH 50.612 PA7001	3 mm	0.118 in	IP68 - Dust Tight Waterproof	M12x1.5		Cable Gland	Sealing Ring	0.256 "	6.5 mm	Gray	100 °C	-40 °C	8 mm	0.315 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.86
		10	$ 0.73
		25	$ 0.70
		50	$ 0.68
		100	$ 0.65
		300	$ 0.59
		500	$ 0.53
		1000	$ 0.48
		2500	$ 0.43

Description

General part information

50.612 Series

Cable Gland Polyamide (PA6), Nylon 6 M12x1.5 Black
