M20-9950845

Active

Harwin Inc.

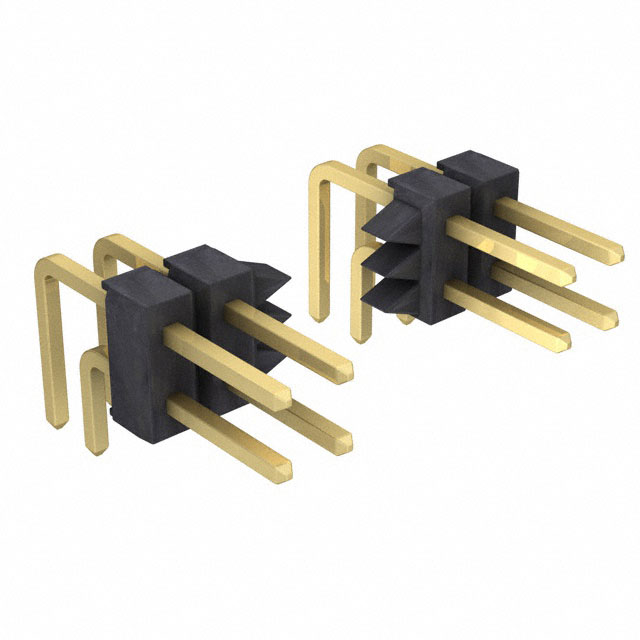

8+8 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20 Series Spec Sheet M20-003 +1

M20-9950845

Active

Harwin Inc.

8+8 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20 Series Spec Sheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9950845

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-995 Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Type	Number of Rows	Termination	Contact Material	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Material Flammability Rating	Insulation Color	Shrouding	Contact Finish - Mating	Number of Positions	Contact Finish - Post
Harwin Inc. M20-9950545	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	10	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded	Gold
Harwin Inc. M20-9950845	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm		6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded	Gold	16
Harwin Inc. M20-9951046	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	20	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded			Tin
Harwin Inc. M20-9951346	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	26	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded			Tin
Harwin Inc. M20-9950445	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	8	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded	Gold
Harwin Inc. M20-9951045	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	20	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded	Gold
Harwin Inc. M20-9950346	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	6	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded			Tin
Harwin Inc. M20-9950846	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm		6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded		16	Tin
Harwin Inc. M20-9950745	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	Through Hole Right Angle	0.118 in	3 mm	Square	Male Pin	2	Solder	Brass	All	Board to Board Cable	0.1 in	2.54 mm	14	6.1 mm	0.24 in	Push-Pull	3 A	2.54 mm	0.1 in	Cuttable Header	UL94 V-0	Black	Unshrouded	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.56
		300	$ 0.45
		600	$ 0.41
		1200	$ 0.40
Newark	Each	500	$ 0.65
		1000	$ 0.54
