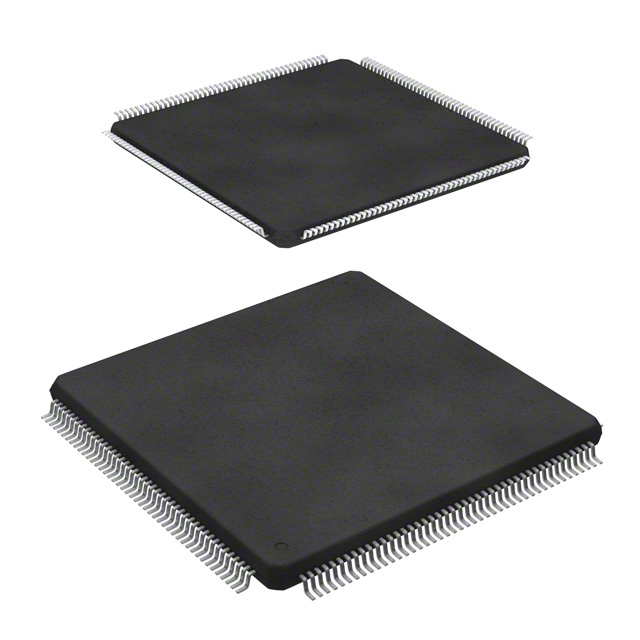

XE169FH200F100LABKXQSA1

Obsolete

Infineon Technologies

IC MCU 16BIT 1.6MB FLASH 176LQFP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC MCU 16BIT 1.6MB FLASH 176LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	XE169FH200F100LABKXQSA1

Connectivity	SSC, LINbus, CANbus, USI, EBI/EMI, SPI, UART/USART, I2C
Core Processor	C166SV2
Core Size	16-Bit
Data Converters	10 b, 30
Mounting Type	Surface Mount
Number of I/O	118
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	176-LQFP Exposed Pad
Peripherals	WDT, I2S, PWM, POR
Program Memory Size	1.6 MB
Program Memory Type	FLASH
RAM Size	112 K
Speed	100 MHz
Supplier Device Package	PG-LQFP-176-12
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

Part	Core Processor	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Speed	RAM Size	Oscillator Type	Peripherals	Data Converters	Connectivity	Number of I/O	Program Memory Type	Operating Temperature [Min]	Operating Temperature [Max]	Program Memory Size	Core Size	Package / Case
Infineon Technologies XE169FH200F100LABKXQSA1	C166SV2	Surface Mount	5.5 V	3 V	PG-LQFP-176-12	100 MHz	112 K	Internal	I2S POR PWM WDT	10 b 30	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	118	FLASH	-40 °C	125 °C	1.6 MB	16-Bit	176-LQFP Exposed Pad
Infineon Technologies XE169FH200F100LABKXUMA1	C166SV2	Surface Mount	5.5 V	3 V	PG-LQFP-176-12	100 MHz	112 K	Internal	I2S POR PWM WDT	10 b 30	CANbus EBI/EMI I2C LINbus SPI SSC UART/USART USI	118	FLASH	-40 °C	125 °C	1.6 MB	16-Bit	176-LQFP Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

C166SV2 XE16xxH Microcontroller IC 16-Bit 100MHz 1.6MB (1.6M x 8) FLASH PG-LQFP-176-12
