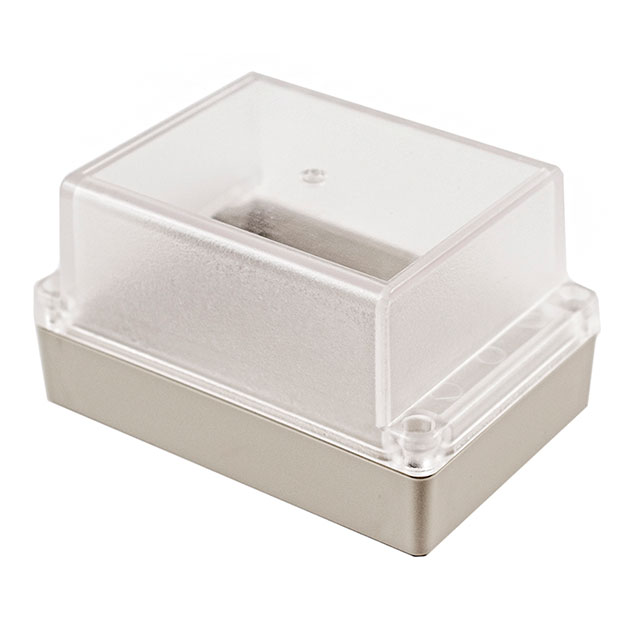

RP1145C

Active

Hammond Manufacturing

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE WALL MOUNT WATERTIGHT ENCLOSURE

Search across all available documentation for this part.

Active

Hammond Manufacturing

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE WALL MOUNT WATERTIGHT ENCLOSURE

Technical Specifications

Parameters and characteristics for this part

Specification	RP1145C

Area (L x W)	108 cm²
Area (L x W)	16.7 in²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	70.1 mm
Height [z]	2.76 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	4.94 in
Size / Dimension [x]	125.48 mm
Size / Dimension [y]	3.39 in
Size / Dimension [y]	86.11 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Design	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Color	Container Type	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing RP1145C	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70.1 mm	2.76 in	Clear Cover/Door Gray	Box	108 cm²	16.7 in²	4.94 in	3.39 in	125.48 mm	86.11 mm
Hammond Manufacturing RP1145BFC	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70.1 mm	2.76 in	Clear Cover/Door Gray	Box	134 cm˛	20.7 in˛	6.14 in	3.39 in	155.96 mm	86.11 mm
Hammond Manufacturing RP1145BF	ABS	Cover Included	2.03 mm	0.08 "	UL94 HB	70 mm	2.756 "	Gray	Box	134 cm˛	20.7 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.76

General part information

Box ABS Gray, Clear Cover/Door Cover Included 4.940" L x 3.390" W (125.48mm x 86.11mm) X 2.760" (70.10mm)
