0099990989

Active

Molex

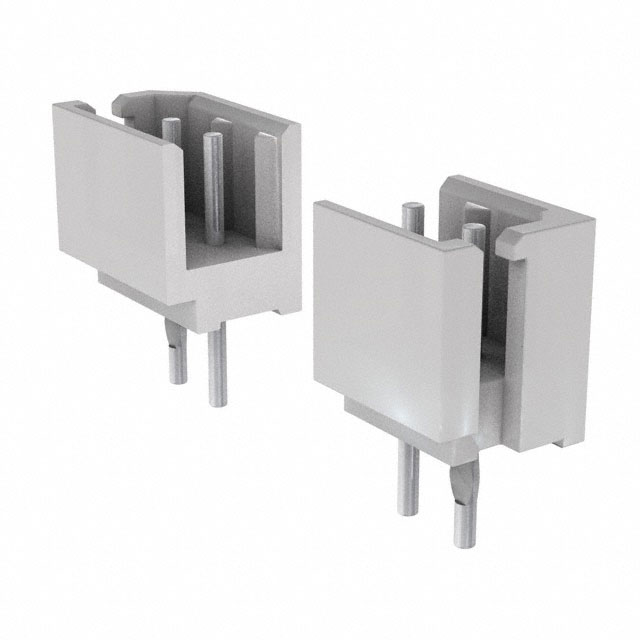

CONN HEADER VERT 5POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

0099990989

Active

Molex

CONN HEADER VERT 5POS 2.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0099990989

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Post	160 µin
Contact Finish Thickness - Post	4.06 µm
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.35 in
Overall Contact Length	8.89 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

009999 Series

Part	Applications	Insulation Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows	Style	Shrouding	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Termination	Insulation Color
Molex 0099990999	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	15	5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990987	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in		5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990989	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in		5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990998	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	14	5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990995	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	11	5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990990	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	6	5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990996	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	12	5.9 mm	0.232 in	Circular	Solder	Natural
Molex 0099990993	Automotive General Purpose Industrial Medical Telecommunications	Polyamide (PA66) Nylon 6/6 Glass Filled	Header	0.138 in	3.5 mm	Brass	Male Pin	2.5 mm	0.098 in	1	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Detent Lock	160 µin	4.06 µm	0.35 in	8.89 mm	Tin	Through Hole	All	3.5 mm	0.138 in	9	5.9 mm	0.232 in	Circular	Solder	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.39
		10	$ 0.29
		100	$ 0.22
		500	$ 0.18
		1000	$ 0.17
		5000	$ 0.15
		10000	$ 0.14

Description

General part information

009999 Series

Connector Header Through Hole 5 position 0.098" (2.50mm)

Documents

Technical documentation and resources

No documents available
