PT10MH01-224A2020-S

Active

Amphenol Piher Sensing Systems

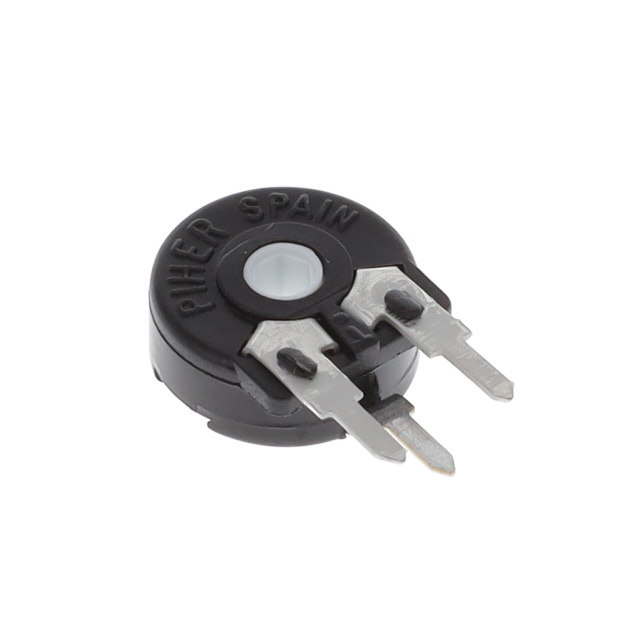

TRIMMER 220K OHM 0.15W PC PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT10MH01-224A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 220K OHM 0.15W PC PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT10MH01-224A2020-S

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	150 mW
Resistance	220 kOhms
Resistive Material	Carbon
Size / Dimension	Round
Size / Dimension [diameter]	0.406 in
Size / Dimension [diameter]	10.3 mm
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT10MH01 Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Power (Watts)	Termination Style	Number of Turns	Tolerance	Resistive Material	Mounting Type	Temperature Coefficient	Resistance	Adjustment Type
Amphenol Piher Sensing Systems PT10MH01-103A2020-I-PM-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	10000 Ohms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-202A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	2 kOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-253A2020-PM-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	25 kOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-505A3030-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	30 %	Carbon	Through Hole	300 ppm/°C	5 MOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-251A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	250 Ohms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-102A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	1000 Ohms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-254A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	250 kOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-224A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	220 kOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-252A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	2.5 kOhms	Side Adjustment
Amphenol Piher Sensing Systems PT10MH01-474A2020-S	0.406 in	10.3 mm	Round	150 mW	PC Pins	1	20 %	Carbon	Through Hole	300 ppm/°C	470 kOhms	Side Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.60
		10	$ 0.48
		25	$ 0.44
		50	$ 0.41
		100	$ 0.39
		250	$ 0.35
		500	$ 0.33
		2000	$ 0.29
		6000	$ 0.26

Description

General part information

PT10MH01 Series

220 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment

Documents

Technical documentation and resources
