67A-DF-3C-030C

Active

Grayhill Inc.

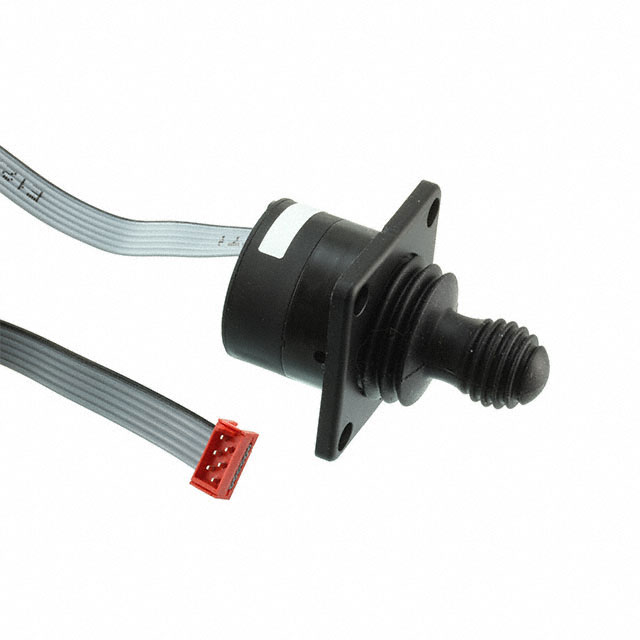

SWITCH JOYSTICK FINGER TIP HALL

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH JOYSTICK FINGER TIP HALL

Technical Specifications

Parameters and characteristics for this part

Specification	67A-DF-3C-030C

Actuator Type	Finger Tip
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Digital (Hall Effect Over I2C Interface)
Panel Cutout Dimensions [diameter]	25.58 mm
Switch Function	360° Directional
Termination Style	Cable with Connector
Type	Joystick, 2 - Axis
Voltage - Supply	3.3 V

Part	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Voltage - Supply	Output	Ingress Protection	Operating Force	Actuator Type
Grayhill Inc. 67A-DF-3C-030C	Joystick 2 - Axis	25.58 mm	1000000 Cycles	85 °C	-40 °C	360° Directional	Cable with Connector	3.3 V	Digital (Hall Effect Over I2C Interface)	IP67 - Dust Tight Waterproof	300 gf	Finger Tip
Grayhill Inc. 67A-DF-3C-060C	Joystick 2 - Axis	25.58 mm	1000000 Cycles	85 °C	-40 °C	360° Directional	Cable with Connector	3.3 V	Digital (Hall Effect Over I2C Interface)	IP67 - Dust Tight Waterproof	300 gf	Finger Tip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Joystick, 2 - Axis Digital (Hall Effect Over I2C Interface) Output
