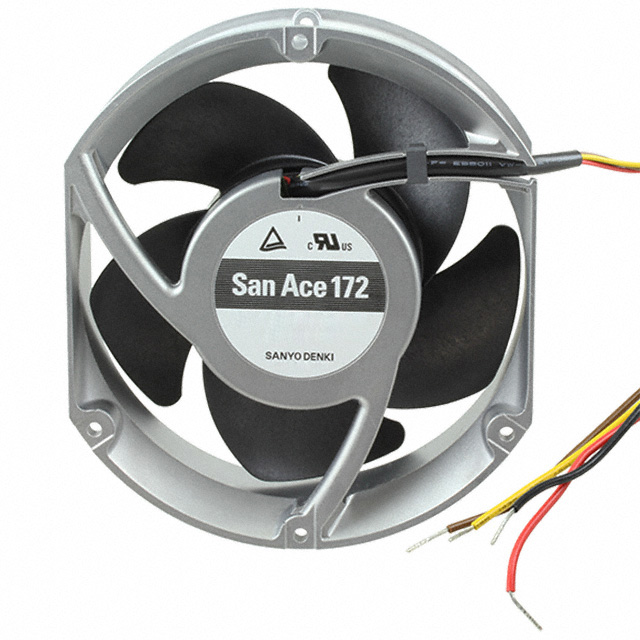

9SG5748P5G01

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9SG5748P5G01

Air Flow	546 CFM
Air Flow	15.29 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	2.91 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	78 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	140 W
RPM	8600 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	4.02 in H2O
Static Pressure	1001.3 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	760 g
Weight	1.7 lbs
Width [y]	51 mm

Part	Termination	Power (Watts)	Fan Type	Features	Weight	Weight	Lifetime @ Temp.	Material - Blade	Width [y]	Approval Agency	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Air Flow	Air Flow	Material - Frame	Voltage - Rated [custom]	RPM	Bearing Type	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]
Sanyo Denki America Inc. 9SG5748P5G01	4 Wire Leads	140 W	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	760 g	1.7 lbs	40000 Hrs	Plastic	51 mm	cURus TUV	4.02 in H2O	1001.3 Pa	Rectangular/Rounded	150 mm	172 mm	2.91 A	546 CFM	15.29 m³/min	Aluminum	48 VDC	8600 RPM	Ball	78 dB(A)	60 °C	-20 °C	-20 C	60 °C	72 VDC	36 VDC
Sanyo Denki America Inc. 9SG5748P5H01	4 Wire Leads	1.62 W	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	760 g	1.7 lbs	40000 Hrs	Plastic	51 mm	cURus TUV	3.09 in H2O	769.7 Pa	Rectangular/Rounded	150 mm	172 mm	1.62 A	410 CFM	11.48 m³/min	Aluminum	48 VDC	6500 RPM	Ball	71 dB(A)	60 °C	-20 °C	-20 C	60 °C	72 VDC	36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 546.0 CFM (15.29mł/min) 4 Wire Leads
