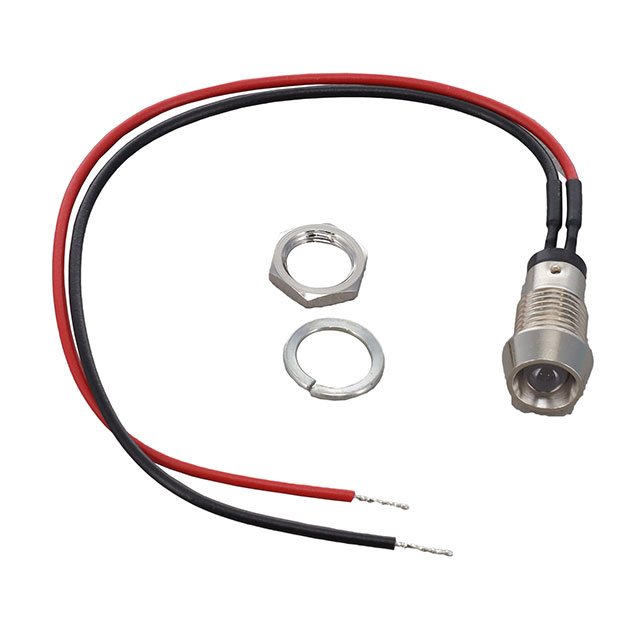

MPR5BCW6.0
ActiveBivar Inc.
STANDARD METAL PANEL MOUNT INDICATORS, RECESSED, 2 LEADED, 5MM BI-COLOR HE RED/GREEN LED W\ WHITE DIFFUSED LENS, 6 IN. WIRE / TR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPR5BCW6.0
ActiveBivar Inc.
STANDARD METAL PANEL MOUNT INDICATORS, RECESSED, 2 LEADED, 5MM BI-COLOR HE RED/GREEN LED W\ WHITE DIFFUSED LENS, 6 IN. WIRE / TR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPR5BCW6.0 |
|---|---|
| Current | 20 mA, 20 mA |
| Lamp Color | Green, Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 8mcd Red, 8mcd Green |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 45 ° |
| Voltage | 2 V, 2.1 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPR5BCW6.0 Series
LED Panel Indicator Green, Red Diffused 45° 2.1V Green, 2V Red 20mA Green, 20mA Red Wire Leads - 6" (152.40mm)
