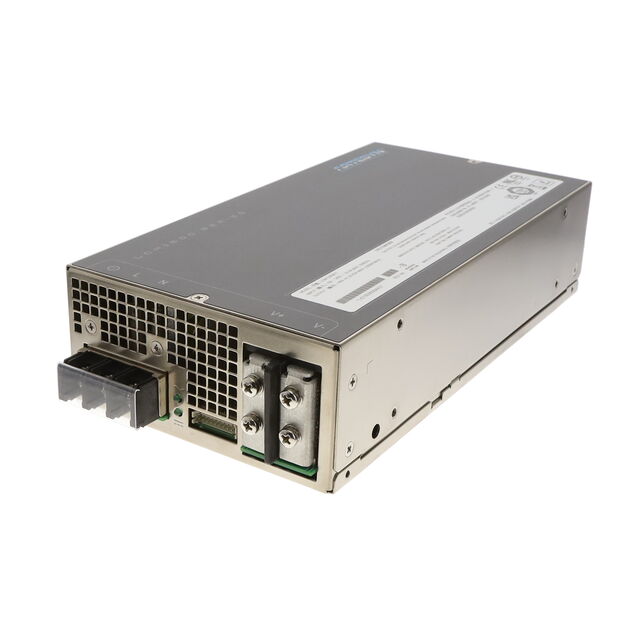

LCM1500W-T-B

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 33A 1500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCM1500W-T-B

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 48V 33A 1500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCM1500W-T-B

Applications	ITE (Commercial), Medical
Approval Agency	TUV, CCC, CB, BSMI, CE, cURus
Current - Output 1	33 A
Efficiency	91 %
Features	Load Sharing, I2C Interface, PFC, Remote Sense, Universal Input, Adjustable Output, Remote On/Off
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	1500 W
Size / Dimension [x]	10 in
Size / Dimension [x]	254 mm
Size / Dimension [y]	132 mm
Size / Dimension [y]	5.2 in
Size / Dimension [z]	2.43 "
Size / Dimension [z]	61.7 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

LCM1500 Series

Part	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Approval Agency	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features	Applications	Current - Output 1	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Power (Watts)
ARTESYN / Advanced Energy LCM1500R-T-4	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	ITE (Commercial) Medical	43 A	4000 V	1	28 V	1500 W
ARTESYN / Advanced Energy LCM1500W-T	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	ITE (Commercial) Medical	33 A	4000 V	1	48 V	1500 W
ARTESYN / Advanced Energy LCM1500N-T-4	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	ITE (Commercial) Medical	100 A	4000 V	1	15 V	1500 W
ARTESYN / Advanced Energy LCM1500L-T-4	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	ITE (Commercial) Medical	133 A	4000 V	1	12 V	1500 W
ARTESYN / Advanced Energy LCM1500W-T-B	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	ITE (Commercial) Medical	33 A	4000 V	1	48 V	1500 W
ARTESYN / Advanced Energy LCM1500U-T	91 %	90 VAC	264 VAC	Chassis Mount	BSMI CB CCC CE cURus TUV	Front End	2.43 "	10 in	254 mm	132 mm	5.2 in	61.7 mm	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	ITE (Commercial) Medical	43 A	4000 V	1	36 V	1500 W
ARTESYN / Advanced Energy LCM1500Q-T-5	89 %	90 VAC	264 VAC	Rack Mount	CB CE TUV ULcUL	Front End	2.5 in	10 in	254 mm	132.1 mm	5.2 in	63.5 mm	Adjustable Output I2C Interface Load Sharing PMBus™ Remote Sense Universal Input	ITE (Commercial) Medical	67 A	4000 V	1	24 V	1500 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 489.57
		3	$ 459.18
		5	$ 449.05
		10	$ 432.17

Description

General part information

LCM1500 Series

Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
