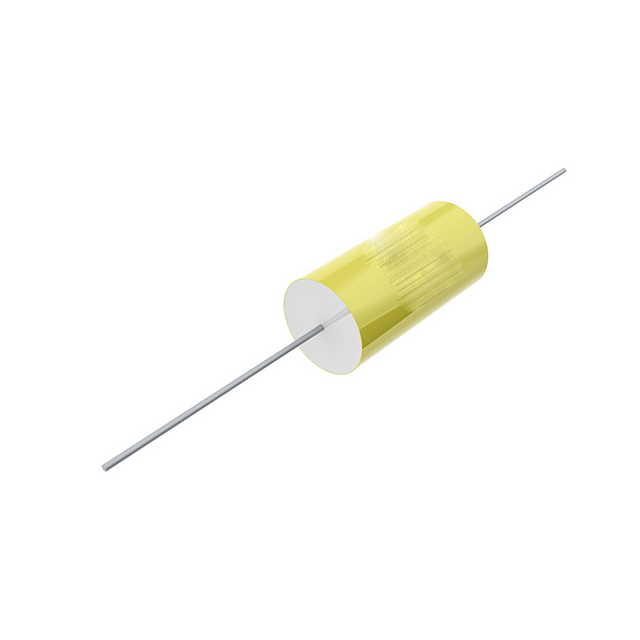

A72SQ2220AA00J

Obsolete

KEMET

CAP FILM 0.022UF 5% 1.5KVDC AXL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.022UF 5% 1.5KVDC AXL

Technical Specifications

Parameters and characteristics for this part

Specification	A72SQ2220AA00J

Applications	High Pulse, DV/DT, DC Filtering, High Frequency, Switching, DC Link
Capacitance	0.022 µF
Dielectric Material	Metallized, Polypropylene (PP)
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Size / Dimension [z]	28 mm
Size / Dimension [z]	1.102 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	450 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

Part	Dielectric Material	Termination	Voltage Rating - AC	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Capacitance	Package / Case	Tolerance	Voltage Rating - DC	Voltage Rating - DC
KEMET A72SQ2220AA00J	Metallized Polypropylene (PP)	PC Pins	450 V	Through Hole	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	105 ░C	-55 °C	28 mm	0.492 in	1.102 in	12.5 mm	0.022 µF	Axial	5 %	1.5 kVDC	1.5 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.022 µF Film Capacitor 450V 1500V (1.5kV) Polypropylene (PP), Metallized Axial
