EXN-23363-BL

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 61.1 MM, 89 MM, 177.7 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 61.1 MM, 89 MM, 177.7 MM, IP66

Technical Specifications

Parameters and characteristics for this part

Part	Color	Height [z]	Height [z]	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight	Material	Thickness [z]	Thickness [z]	Ratings	Container Type	Features	Design
BUD INDUSTRIES EXN-23363-BKP	Black	2.406 in	61.1 mm	UL94 V-0	24.5 in²	158 cm²	0.79 lb	358.34 g	Aluminum with Plastic Metal Polycarbonate Panels	2.79 mm	0.11 in	IP66	Box	Card Guides Sealing Gaskets	End Panel(s)
BUD INDUSTRIES EXN-23363-BL	Black Blue	2.406 in	61.1 mm		24.5 in²	158 cm²			Aluminum Metal	2.79 mm	0.11 in	IP66	Box	Card Guides Sealing Gaskets	End Panel(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.10

General part information

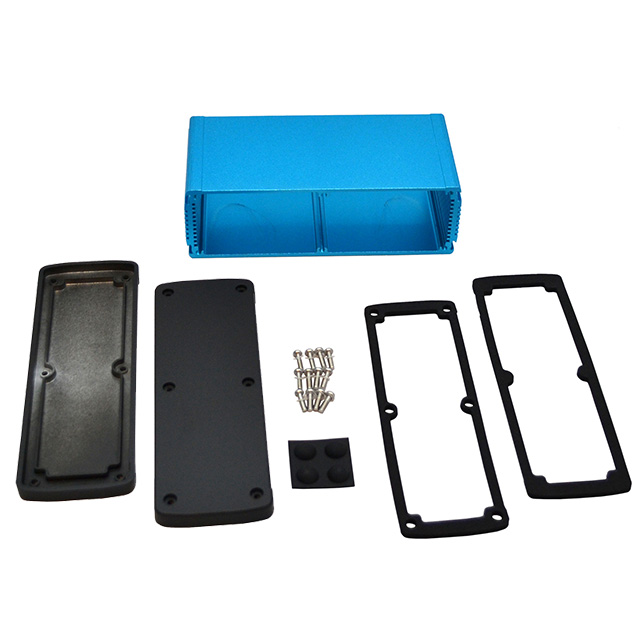

Box Metal, Aluminum Black, Blue End Panel(s) 6.996" L x 3.504" W (177.69mm x 89.00mm) X 2.406" (61.10mm)

Technical documentation and resources
