1042049

Obsolete

SICK, Inc.

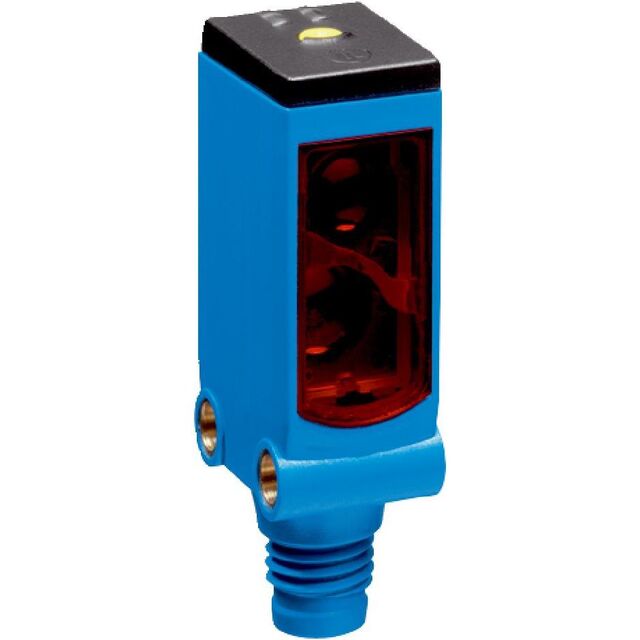

SENSOR PROXIMITY 120MM PNP

Search across all available documentation for this part.

Obsolete

SICK, Inc.

SENSOR PROXIMITY 120MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Output Configuration	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Adjustment Type	Sensing Method	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]
SICK, Inc. 1042049	RED (650nm)	4 mm	0.157 "	120 mm	4.724 in	PNP	Connector M8	-40 °C	60 °C	30 VDC	10 VDC	500 µs	Adjustable	Proximity	IP67
SICK, Inc. 1067757	RED (650nm)	4 mm		180 mm		PNP	Connector M8	-40 °C	60 °C	30 VDC	10 VDC	450 µs	Adjustable	Proximity	IP66 IP67	7.087 in	0.157 in
SICK, Inc. 1042033	RED (650nm)	4 mm		180 mm		PNP	Connector M8	-40 °C	60 °C	30 VDC	10 VDC	410 µs	Adjustable	Proximity	IP67	7.087 in	0.157 in
SICK, Inc. 1067756	RED (650nm)	4 mm		180 mm		PNP	Connector M8	-40 °C	60 °C	30 VDC	10 VDC	50 µs	Adjustable	Proximity	IP67	7.087 in	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Proximity Optical Sensor 0.157" ~ 4.724" (4mm ~ 120mm) PNP
