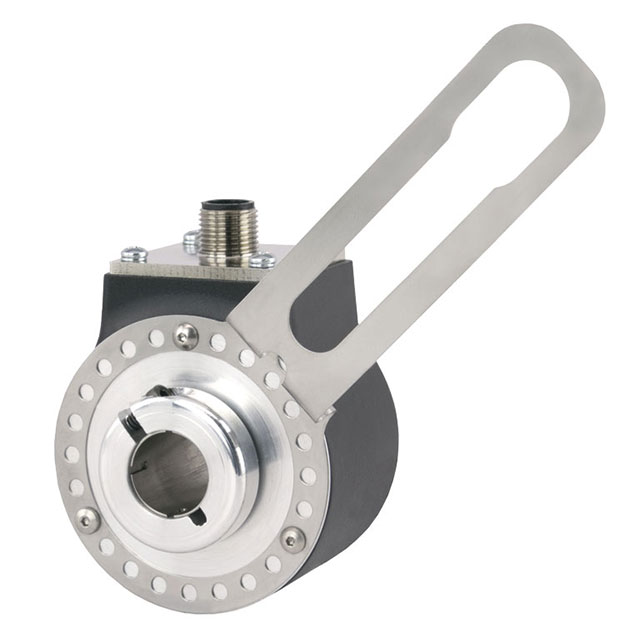

58TP-10SJ-B1000B5OC-SMX-T6-S4
ActiveEncoder Products Company
ENCODER ROTARY PROG 58MM DIA 10M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
58TP-10SJ-B1000B5OC-SMX-T6-S4
ActiveEncoder Products Company
ENCODER ROTARY PROG 58MM DIA 10M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 58TP-10SJ-B1000B5OC-SMX-T6-S4 |
|---|---|
| Actuator Type | Open Center |
| Actuator Type [diameter] | 10 mm |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | User Selectable |
| Output Type | Open Collector |
| Pulses per Revolution | Programmable |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 742.00 | |
Description
General part information
58TP-10 Series
ENCODER ROTARY PROG 58MM DIA 10M
