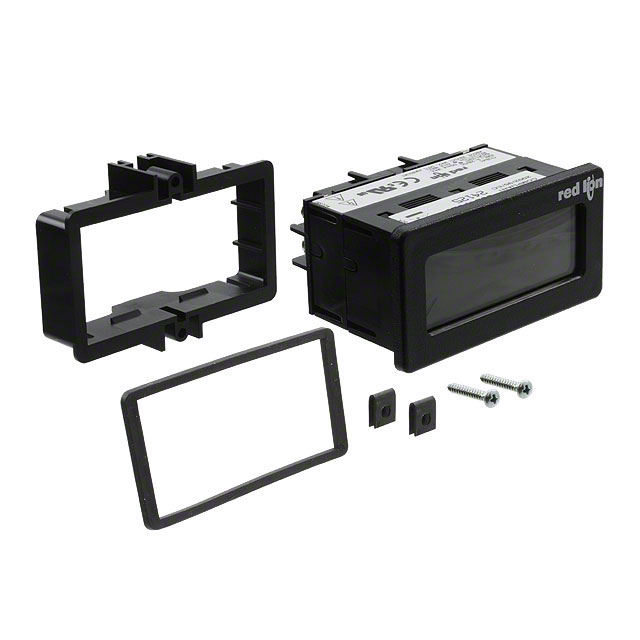

CUB4I020

Obsolete

RED LION CONTROLS

PANEL METER, 3.5 DIGIT, DC CURRENT, 9 TO 28 VDC, CUB4 SERIES

Search across all available documentation for this part.

Obsolete

RED LION CONTROLS

PANEL METER, 3.5 DIGIT, DC CURRENT, 9 TO 28 VDC, CUB4 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	CUB4I020

Display Characters - Height	0.6 in
Display Characters - Height	15.2 mm
Display Type	LCD - Red Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	199.9 mA
Measuring Range [Min]	-199.9 mA
Measuring Type	Current
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	33 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	9 V
Weight	0.206 lb
Weight	93.44 g

Part	Type	Display Type	Measuring Range [Max]	Measuring Range [Min]	Measuring Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Ingress Protection	Weight	Weight	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row
RED LION CONTROLS CUB4I020	Ammeter	LCD - Red Characters Backlight	199.9 mA	-199.9 mA	Current	28 V	9 V	60 °C	0 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	0.206 lb	93.44 g	0.6 in	15.2 mm	68 mm	33 mm	3.5
RED LION CONTROLS CUB4I02B
RED LION CONTROLS CUB4I01B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 198.00

General part information

Ammeter LCD - Red Characters, Backlight Display Panel Mount
