YB25KKW01-2CF12-JB

Active

NKK Switches

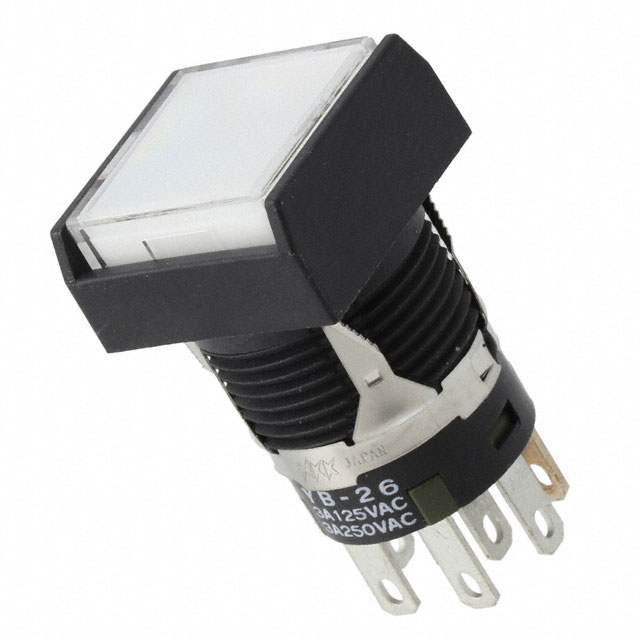

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB25KKW01-2CF12-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25KKW01-2CF12-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25KK Series

Part	Voltage Rating - DC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Termination Style	Termination Style	Termination Style	Mechanical Life	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Color - Actuator/Cap	Circuit	Features	Voltage Rating - AC	Illumination Type, Color	Current Rating (Amps)	Electrical Life	Type	Mounting Type
NKK Switches YB25KKG01-2CF02-JB	28 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	2 VDC	Clear	DPDT	Voltage Reduction Lighting	28 V	Green/Red LED	0.4 VA	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKW01-6G-JB	30 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	3.6 VDC	Clear	DPDT	Voltage Reduction Lighting	125 V	Blue LED	3 A	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKW01-5D-JB	30 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	2 VDC	Clear	DPDT	Voltage Reduction Lighting	125 V	Amber LED	3 A	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKG01-6B-JB	28 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	3.3 VDC	Clear	DPDT	Voltage Reduction Lighting	28 V	LED White	0.4 VA	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKW01-BB	30 V	No Marking	70 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm		White	DPDT	Voltage Reduction Lighting	125 V		3 A	100000 Cycles	Standard	Panel Mount Snap-In
NKK Switches YB25KKG01-5F05-JF	28 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	5 VDC	Clear	DPDT	Voltage Reduction Lighting	28 V	Green LED	0.4 VA	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKW03	30 V	No Marking	70 °C	-25 °C	On-Mom	Plunger for Cap		PC Pin		1000000 Cycles	16 mm			DPDT	Voltage Reduction Lighting	125 V		3 A	100000 Cycles	Standard	Panel Mount Snap-In
NKK Switches YB25KKW01-2CF12-JB	30 V	No Marking	50 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm	12 VDC	Clear	DPDT	Voltage Reduction Lighting	125 V	Green/Red LED	3 A	100000 Cycles	Illuminated Standard	Panel Mount Snap-In
NKK Switches YB25KKW01-FB	30 V	No Marking	70 °C	-25 °C	On-Mom	Button Square	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	16 mm		Green	DPDT	Voltage Reduction Lighting	125 V		3 A	100000 Cycles	Standard	Panel Mount Snap-In
NKK Switches YB25KKW03-5F05-JB	30 V	No Marking	50 °C	-25 °C	On-Mom	Button Square		PC Pin		1000000 Cycles	16 mm	5 VDC	Clear	DPDT	Voltage Reduction Lighting	125 V	Green LED	3 A	100000 Cycles	Illuminated Standard	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 32.52
Newark	Each	1	$ 45.05
		5	$ 40.17
		10	$ 38.81
		25	$ 36.66
		50	$ 34.13
		100	$ 30.23
		250	$ 27.11

Description

General part information

YB25KK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources
