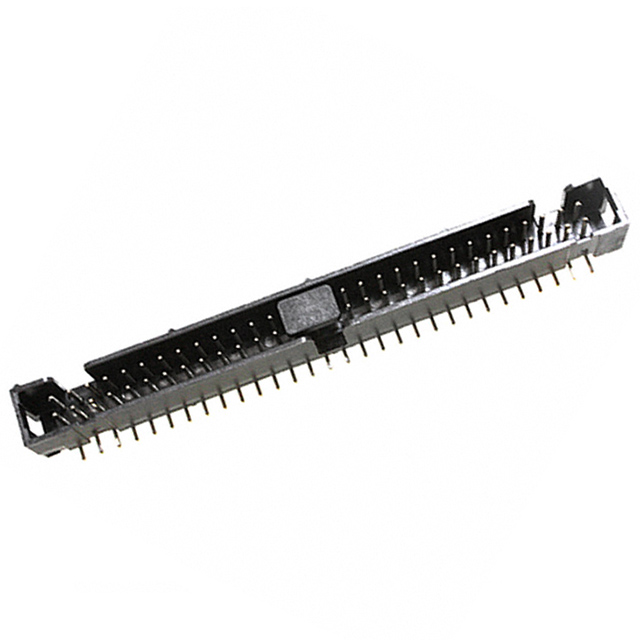

N2560-6V0C-RB-WH

Active

3M (TC)

CONN HEADER SMD 60POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2560-6V0C-RB-WH

Active

3M (TC)

CONN HEADER SMD 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N2560-6V0C-RB-WH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N2560 Series

Part	Contact Type	Contact Finish - Post	Shrouding	Contact Shape	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Features	Termination	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Style	Insulation Material	Insulation Color	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]
3M (TC) N2560-5002-RB	Male Pin	Tin	Shrouded - 4 Wall	Square	Copper Alloy	All	Gold	Through Hole Right Angle	105 ░C	-55 °C	UL94 V-0	0.1 in	2.54 mm	60	Push-Pull	30 Áin	0.76 Ám	1.75 A	Keying Slot	Solder	Header	200 µin	5.08 µm	2	0.338 in	8.59 mm	Board to Board Cable	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	2.84 mm	0.112 in	2.54 mm	0.1 in
3M (TC) N2560-6002-UG	Male Pin	Tin-Lead	Shrouded - 4 Wall	Square	Copper Alloy	All	Gold	Through Hole	105 ░C	-55 °C	UL94 V-0	0.1 in	2.54 mm	60	Push-Pull	15 µin	0.38 µm	1.75 A	Keying Slot	Solder	Header	200 µin	5.08 µm	2			Board to Board Cable	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	2.84 mm	0.112 in	2.54 mm	0.1 in	9.91 mm	0.39 in
3M (TC) N2560-6V0C-RB-WH	Male Pin	Tin	Shrouded - 4 Wall	Square	Copper Alloy	All	Gold	Surface Mount	105 ░C	-55 °C	UL94 V-0	0.1 in	2.54 mm	60	Push-Pull	30 Áin	0.76 Ám	1.75 A	Keying Slot Pick and Place	Solder	Header	200 µin	5.08 µm	2			Board to Board Cable	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black			2.54 mm	0.1 in	9.91 mm	0.39 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 5.46

Description

General part information

N2560 Series

Connector Header Surface Mount 60 position 0.100" (2.54mm)
