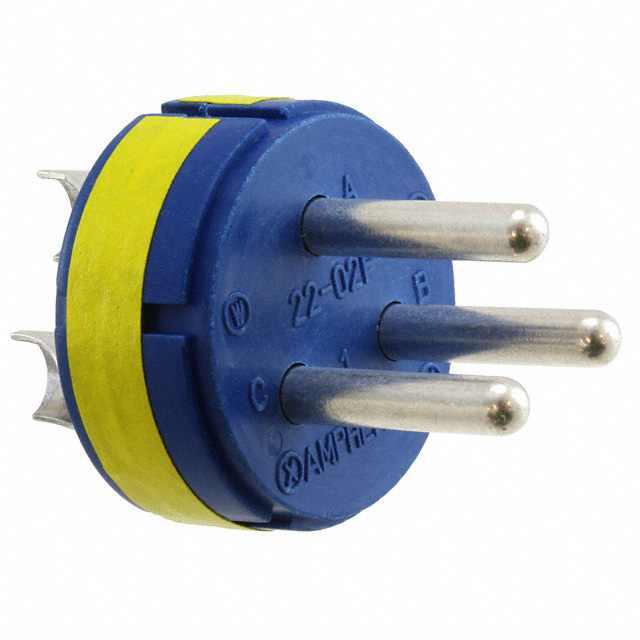

97-22-2P

Active

Amphenol Industrial Operations

CONN MALE INSERT 3P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN MALE INSERT 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Features	Shell Size - Insert	Orientation	Insert Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Material	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions
Amphenol Industrial Operations 97-22-2P	Unshielded	Insert Only Requires Shell	22-2	N	Diallyl Phthalate (DAP)	Silver	-55 °C	125 °C	Automotive Industrial	Copper Alloy	Insert Male Pins
Amphenol Industrial Operations 97-22-12P	Unshielded	Insert Only Requires Shell		N	Diallyl Phthalate (DAP)	Silver	-55 °C	125 °C	Automotive Industrial	Copper Alloy	Insert Male Pins	22	12
Amphenol Industrial Operations 97-22-23S(431)	Unshielded	Insert Only Requires Shell		N	Diallyl Phthalate (DAP)	Silver	-55 °C	125 °C	Automotive Industrial	Copper Alloy	Female Sockets Insert	23	22	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Insert, Male Pins Solder Cup
