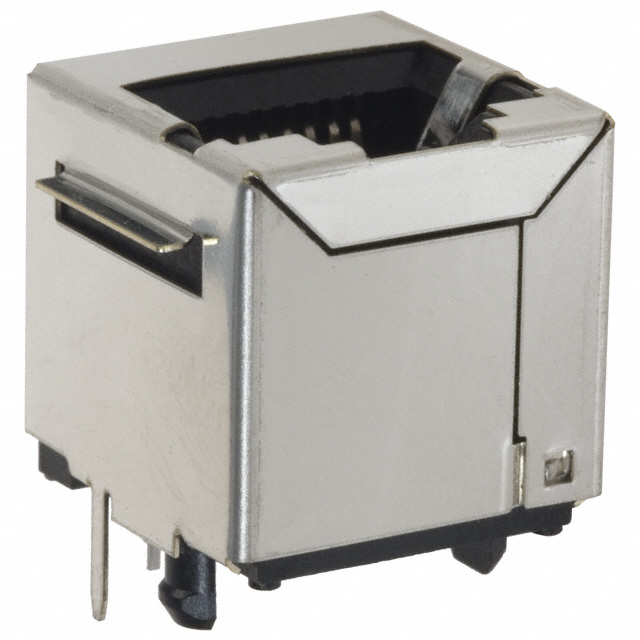

SS-650810S-A-FLS

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C VERT SHLD

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C VERT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-650810S-A-FLS

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Panel Stops
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Tab Direction	Number of Ports	Mounting Type	Contact Material	Number of Positions/Contacts	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Housing Material	Connector Type	Number of Rows	Orientation
BEL MAGNETIC SOLUTIONS SS-650810-NF-RMK-A112	Solder	0.76 Ám	30 Áin	Gold	Board Lock Keyed	User Selectable	1	Through Hole	Copper Alloy	8p8c (RJ45 Ethernet)	Shielded	85 °C	-40 °C	Does Not Contain LED	Thermoplastic	Jack	1	Vertical
BEL MAGNETIC SOLUTIONS SS-650810-A-NF-50	Solder	1.27 µm	50 µin	Gold		User Selectable	1	Through Hole	Copper Alloy	8p8c (RJ45 Ethernet)	Unshielded	85 °C	-40 °C	Does Not Contain LED	Thermoplastic	Jack	1	Vertical
BEL MAGNETIC SOLUTIONS SS-650810-A-NF-K1-50	Solder	1.27 µm	50 µin	Gold	Board Lock Keyed	User Selectable	1	Through Hole	Copper Alloy	8p8c (RJ45 Ethernet)	Unshielded	85 °C	-40 °C	Does Not Contain LED	Thermoplastic	Jack	1	Vertical
BEL MAGNETIC SOLUTIONS SS-650810S-A-FLS	Solder	0.76 Ám	30 Áin	Gold	Board Lock Panel Stops	User Selectable	1	Through Hole	Copper Alloy	8p8c (RJ45 Ethernet)	Shielded	85 °C	-40 °C	Does Not Contain LED	Thermoplastic	Jack	1	Vertical
BEL MAGNETIC SOLUTIONS SS-650810S-A-NF	Solder	0.76 Ám	30 Áin	Gold		User Selectable	1	Through Hole	Copper Alloy	8p8c (RJ45 Ethernet)	Shielded	85 °C	-40 °C	Does Not Contain LED	Thermoplastic	Jack	1	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
