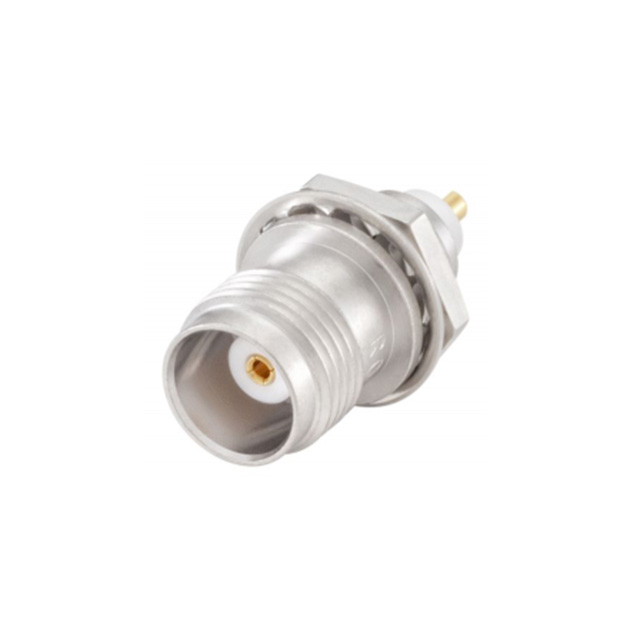

56K504-200N5

Active

Rosenberger

CONN TNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56K504-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Feature	Connector Type	Shield Termination	Voltage Rating	Contact Termination	Impedance	Housing Color	Connector Style	Body Finish	Body Material	Center Contact Plating	Center Contact Material	Mating Cycles	Dielectric Material	Includes	Frequency - Max [Max]	Features	Number of Ports
Rosenberger 56K504-200N5	Bulkhead - Rear Side Nut	Female Socket Jack	Solder	500 V	Solder Cup	50 Ohms	Silver	TNC	White Bronze	Brass	Gold	Bronze	500	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	10 GHz	Extended Insulation	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
