0151320400

Active

Molex

CABLE ASSEMBLY UL 1061 0.05M 24AWG WIRE TO BOARD TO WIRE TO BOARD 4 TO 4 POS F-F CRIMP-CRIMP PICO-LOCK BAG

Search across all available documentation for this part.

Active

Molex

CABLE ASSEMBLY UL 1061 0.05M 24AWG WIRE TO BOARD TO WIRE TO BOARD 4 TO 4 POS F-F CRIMP-CRIMP PICO-LOCK BAG

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Shielding	Length	Length	Length	Number of Positions	Features	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Length [x]	Length [x]	Length [x]
Molex 0151320400	Crimp	Gold	Unshielded	0.164 '	50 mm	1.97 "	4	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151321206	Crimp	Gold	Unshielded	1.97 ft	600 mm		12	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151320703	Crimp	Gold	Unshielded				7	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket	0.984 '	11.81 "	300 mm
Molex 0151320606	Crimp	Gold	Unshielded	1.97 ft	600 mm		6	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151320505	Crimp	Gold	Unshielded					Friction Lock	1	0.059 "	1.5 mm	Socket to Socket	17.76 in		450 mm
Molex 0151320502	Crimp	Gold	Unshielded	0.492 ft	150 mm	5.91 "		Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151321006	Crimp	Gold	Unshielded	1.97 ft	600 mm		10	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151321000	Crimp	Gold	Unshielded	0.164 '	50 mm	1.97 "	10	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151320401	Crimp	Gold	Unshielded	0.328 '	100 mm	3.94 "	4	Friction Lock	1	0.059 "	1.5 mm	Socket to Socket
Molex 0151320503	Crimp	Gold	Unshielded					Friction Lock	1	0.059 "	1.5 mm	Socket to Socket	0.984 '	11.81 "	300 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

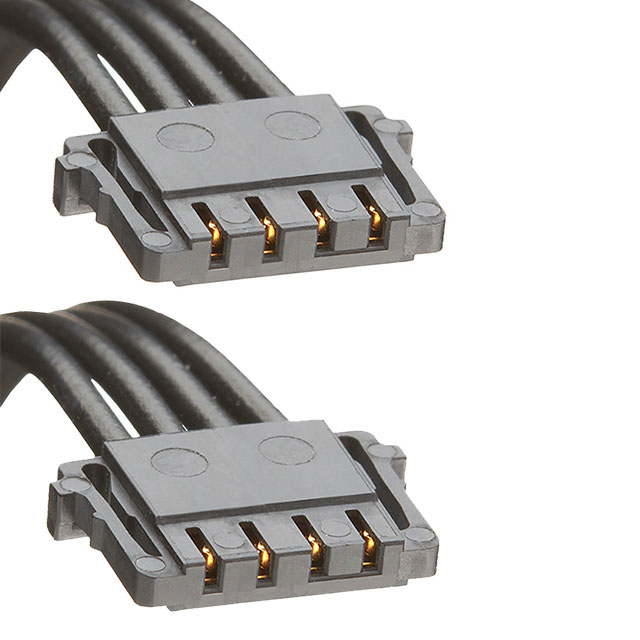

4 Position Cable Assembly Rectangular Socket to Socket 0.164' (50.00mm, 1.97")
